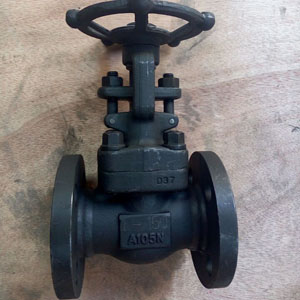

Contact SupplierWe are offering a105 flange gate valve.
A105 gate valve, flange gate valve, forged steel gate valve, class150 gate valve, a105 gate valve, f304 flange gate valve, f316 flange gate valve
size range 12"~2"
working pressure 150lb~800lb
suitable temperature -29~250°c
suitable medium water, gas, oil
cf8(304): suitable for nitric acid
cf8m(316): suitable for acetic acid
technical standard
design standard jbt 7746, api 602
face to face standard jbt 7746, api 602
end connection std jbt1751gb7306, ansi b16.11b2.1
test standard jbt9092, api 598
pressure-temperature rating gbt 9131, ansi b16.34
material a105, f304, f316
operated way manual, gearcase, pneumatic, electric
