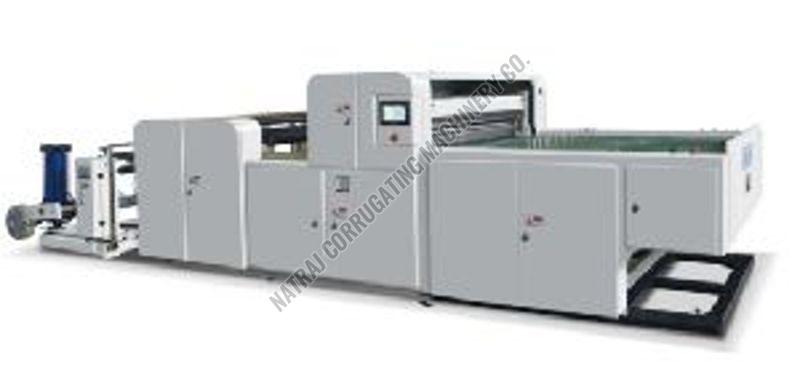

Nagpal Natraja A4 Paper Cutting Machine

₹ 18 Lakh - ₹ 20 Lakh / piece

MOQ1 Set(s)
Automatic GradeAutomatic
Driven TypeElecric
CertificationISO 9001:2008
Brand NameNagpal Natraja
Supply TypeManufacturer, Exporter, Supplier, Retailer, Importer
Preferred Buyer Location All over the world

Company Information

Bamni Khera, Palwal, Haryana

4.6/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 06ACJPN8265D1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Warrenty1 Year
Brand NameNagpal Natraja
ConditionNew
ApplicationPaper Cutting
FeatureAutomatic
Number Of FlowerA4 Paper Cutting Machine
CertificationISO 9001:2008
Availability1000-2000kg
Rated Power9.5 Kw
Automatic GradeAutomatic
Driven TypeElecric

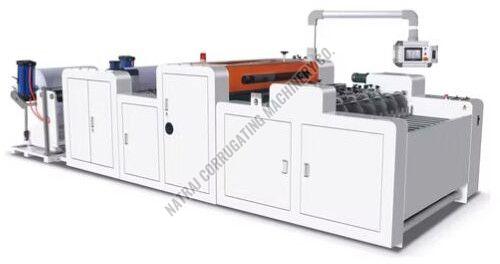

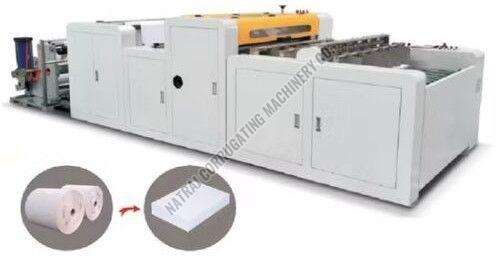

The HQJ-1600 is a precision automatic roll-to-sheet paper cutting machine, designed for high-speed, high-accuracy cutting of various paper materials including 40–300g copy paper, double adhesive paper, and paper-plastic composite materials. With dual roll capability and intelligent control systems, it\\\'s ideal for packaging, printing, and stationery industries.

\r\rKey Features:\r

\r
Material Compatibility:
Handles a wide range of substrates – copy paper, adhesive-coated paper, and laminated composite sheets.
\r
\r
High-Speed & Precision Cutting:
\r
- \r
  Cutting speed: 50–200 cuts/min
  \r
- \r
  Cutting accuracy: ±0.2 mm
  \r
- \r
  Cutting length range: 200–500 mm
  \r
\r
\r
Advanced Control System:
\r
- \r
  Panasonic PLC for stable automation
  \r
- \r
  Weinview touchscreen for user-friendly control interface
  \r
- \r
  Real-time monitoring and parameter setting
  \r
\r
\r
Unwinding System:
\r
- \r
  Dual roll support
  \r
- \r
  Max. roll diameter: Φ1400 mm
  \r
- \r
  Pneumatic 3-inch air shaft discharger
  \r
- \r
  Automatic tension control system
  \r
- \r
  Ultrasonic EPC system for precise edge alignment
  \r
\r
\r
Drive & Motion Components:
\r
- \r
  Main traction motor: 1.5 kW (Shanghai brand)
  \r
- \r
  Feed motor: 3.0 kW (Yaskawa, Japan)
  \r
- \r
  Fan motor: 0.75 kW
  \r
- \r
  Frequency converter: Guangdong SineE
  \r
\r
\r
Cutting & Slitting:
\r
- \r
  Revolving knife: HSS (High-Speed Steel), double-edge usable
  \r
- \r
  Slitting knife: 7-position adjustable
  \r
- \r
  Smooth, burr-free cuts for quality finish
  \r
\r
\r
Mechanical & Electrical Parts:
\r
- \r
  Bearings: Harbin brand
  \r
- \r
  Pneumatic components: Taiwan Mindman
  \r
- \r
  Electrical components: Schneider
  \r
- \r
  Switch knobs: Schneider
  \r
\r

\r\rTechnical Specifications:\r

\r\r\rSpecificationDetails\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r

Model	HQJ-1600
Max. Unwinding Diameter	Φ1400 mm
Max. Cutting Width	1600 mm
Cutting Length Range	200–500 mm
Cutting Speed	50–200 times/min
Cutting Precision	±0.2 mm
Total Power	9 kW
Machine Weight	Approx. 5 tons
Machine Dimensions (L×W×H)	8500 × 2300 × 1600 mm
