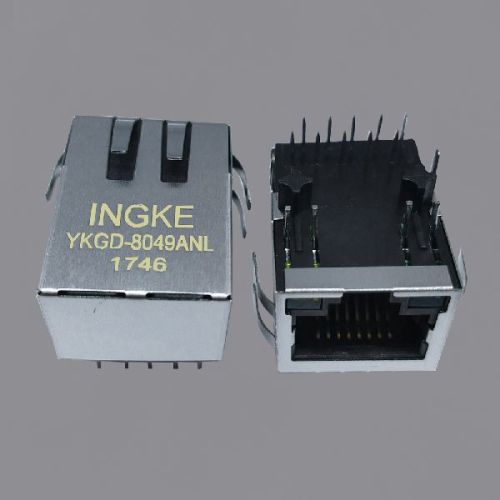

A60-113-331P432 1000 Base-T Through Hole RJ45 Jacks

Ingke YKGD-8049ANL cross EDAC A60-113-331P432 1000 Base-T Through Hole RJ45 Jacks with Integrated Magnetics
Part Number : A60-113-331P432
Made in China:YKJD-0189DNL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCSMonth
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 101001000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation: 90° Angle (Right)
Termination :Solder
LED Color: Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features: Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40��85�
Contact Finish Thickness : 30µin (0.76µm)
Shield Material : Copper Alloy
Housing Material :Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
INGKE can provide 3D model for engineers' design
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
1).High-quality�OEM factory for RJ45 Connector more than 10 years.
2).Cost reduction, lead time within 1 week, FREE samples.
3).After sales services 24*7 to help you solve any kind of problems
Ingke Technology Mass production of the following models;
A63-113-431P112 A60-113-300P432 A63-113-331P422 A60-113-231N432 A63-113-213N491 A60-113-331P432 A60-263-300P562 A64-113-271P521 A63-113-300P131 A63-113-300P422 A63-113-231N435 A64-113-231N420 A63-113-331P431 A60-113-300P492 A60-113-331P411 A60-113-235N414 A60-113-200P471 A63-143-300N161 A63-143-313P161 A60-143-300P111 A63-113-331P4D2 A60-113-271N414 A60-112-331P4D2 A63-112-300P131
