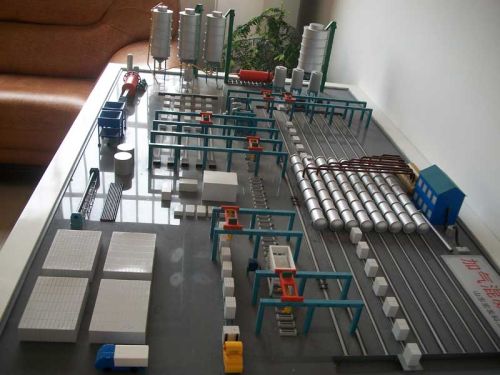

AAC Block Production Line

1 light weight ,Areated concrete density is usually 400-700kg/m3,(according the market in produce ),same as 1/3 of clay block and 1/5 common concrete.So use the Light block can reduce the weight of the build more,and also reduce the beam of roof and pillar press best.then you can see,it can save the material and cost,it also fighting shaking.
2 keeping temperature It has many are porous,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as 1/4 or 1/5 of clay brick,so it is best materials now in the world.
have many kinds material,have lowest waste
Main Material:coal ash sand waste mine material coal stonestone dust and other silicon materials.
1. Product weight is according to 600kg/m3 to control.
2 .annual capacity 200,000M3.
3. set raw material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.
4. water and material rate 0.631
5. one mould product 2.88M3
6. Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
7.casting slurry temperature 38-42 degree
8 .body quiet stop. Time is 1.5-2.5housr, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa
9 .Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.
