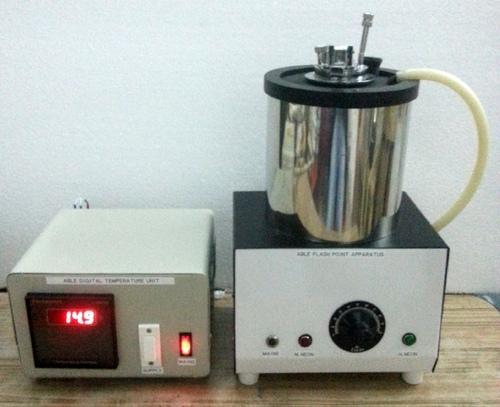

Electric Abels Flash Point Apparatus, Certification : Ce Certified

as per flash point (closed) by means of the ables flash point apparatus

ip23 and isi 1448 [part-i] 1960 [p:20]

it is designed as per i.p. 33 and i.s. 1448 ( part i) 1985. suitable for determining the close up flash point of petroleum and mixture according to ip 33 & ip 170 & also is 1448 (part 1) 1985 (p: 20). it is suitable for oils whose flashes are below 70c. it is supplied with oil cup, cover fitted with stirrer, water bath and stand. electrically heated with energy regulator control suitable to operate at 220 volt. 50 cycles, a.c. mains. supplied with ip thermometer.

1) with oil test jet

2) with gas test jet

optional :-

· variable speed stirrer motor with flexible shaft mounted on mild steel rod with base.

· digital temp. indicator unit having readability of 1c & maximum temp. of 400c with stainless steel     pt -100 thermocouple.

· copper coiled continuously variable temperature control unit.
