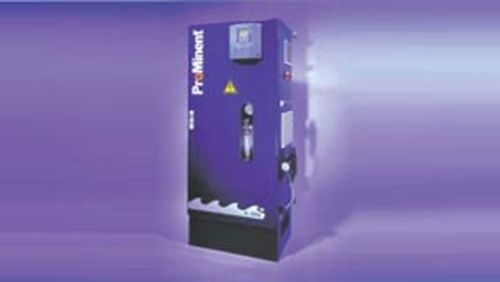

Contact SupplierOZONFILT*OZVa | OZVa1 | OZVa2 | OZVa3/4 |
Ozonegenerating capacity[g/h] | 5 | 15 | 35/40 |
Powerconsumption[kw] | <0.15 | <0.45 | <0.85 |
Power Factor[cos f] | 0.7 | >0.99 | >0.99 |
Cooling water requirment [m³/h] | 0.01 - 0.06 | 0.02 - 0.06 | 0.05 - 0.12 |
Cooling water temperature[°C] | <30 | <30 | <30 |
Power supply [V/Hz] | 230/50 | 230/50 | 230/50 |
Enclosure rating | IP43 | IP43 | IP43 |
Total air requirement[m³/h] | 0.37 | 1 | 2.25 |
Width[mm] | 1190 | 1190 | 710 |
Height [mm] | 1300 | 1300 | 1400 |
Depth[mm] | 305 | 305 | 310 |
Weight [kg] | 70 | 75 | 105 |
Maximum ambient temperature | 35 | 35 | 35 |
Air humidity,ambient air max[%] | 85 | 85 | 45 |
Type | Ozone Capacity |
Number of ozone generators |
cooling water requirement at 15°C (m³/h) |
Air requirement (m³/h) |
Width (mm) | Height (mm) | Depth(mm) |
BONa1D | 80 | 1 | 0.1 | 4 | 800 | 1950 | 500 |
BONa2D | 160 | 2 | 0.2 | 8 | 1600 | 1950 | 500 |
BONa3D | 240 | 3 | 0.3 | 12 | 2000 | 1950 | 500 |
BONa4D | 320 | 4 | 0.4 | 16 | 2400 | 2200 | 600 |
BONa5D | 400 | 5 | 0.5 | 20 | 2400 | 2200 | 600 |
BONa6D | 480 | 6 | 0.6 | 24 | 2800 | 2200 | 600 |
BONa7D | 560 | 7 | 0.7 | 28 | 3200 | 2200 | 600 |
BONa8D | 640 | 8 | 0.8 | 32 | 3400 | 2200 | 600 |
BONa9D | 720 | 9 | 0.9 | 36 | 3400 | 2200 | 600 |
