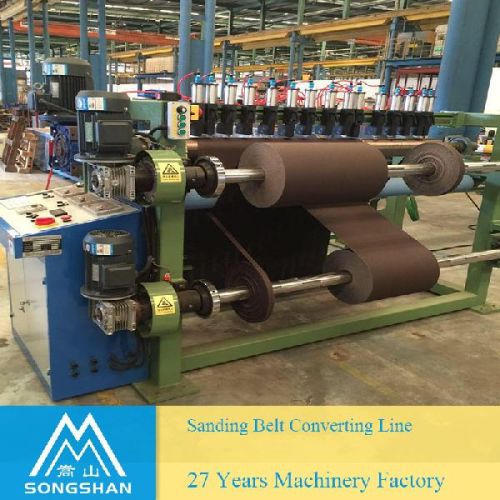

Abrasive Cloth 1650mm Jumbo Roll Slitting Machine

To slit abrasive jumbo or wide rolls. The slitting width range is 50~1650mm.
Adopted with 3 motor, higher power, can cut up to 500mm or 800mm diameter abrasive cloth jumbo roll.
With an independent power system of roll rewinding system.
New type machine is much more precise in slitting width, and easy operation. Only takes 2~3 minutes to change the cutting blades.
cutting length 50~1650mm
cutting speed 2-10mmin (step-less regulation)
setting pressure 200-800kgf (step-less regulation)
cutting precision â±0.5mm
electromagnetic force control inflation 25n.m (step-less regulation)
other air up shaft�electromagnetic force control inflation
power rating 5kw, with three motors
air power pressure 0.7mpa
package wooden case in size of 2970mm*1620mm*1920mm
total weigh 2 ton
