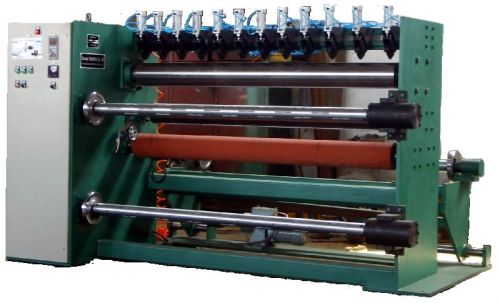

Abrasive Cloth Roll Slitting Machine, Brand Name : Valour

₹ 11.77 Lakh / Set

MOQ1 Set(s)
Brand NameValour
Conditionnew
Rated Power3KW
Applicationabrasive cloth roll,abrasive paper roll, kraft, plastic
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameValour
Applicationabrasive cloth roll,abrasive paper roll, kraft, plastic
Total Carbohydrateone year, lifetime service
Conditionnew
Rated Power3KW
After-Sales Service ProvidedOne year
Country of OriginChina

Abrasive Jumbo Roll Slitting Machine
It is used for slitting regular Paper, Kraft Paper, Non-woven Cloth, Abrasive cloth roll etc.
Technical Parameter:
3.1 Effective width: 1650mm
3.2 Maximum master roll diameter: Ã�ï¿½ 500mm
3.3 Maximum rewind diameter: Ã�ï¿½ 500mm
3.4 Slitting width: 100-1650 mm
3.5 Rewind core diameter: Ã�ï¿½ 76mm
3.6 Slitting balde: Circular blade
3.7 UnwindRewind shafts: Air shaft
3.8 Blade Pressure: 6-60Kgf
3.9 Unwind Break (magnetic powder): 25N. M
3.10 Machine speed: 2 -10mmin
3.11 Slitting Precision: Ã�Â± 0.5mm
3.12 Power: 3KW
3.13 Air supply: 0.7Mpa(7kg)
Package: Strong wooden Case sutiable for long ocean shipping
