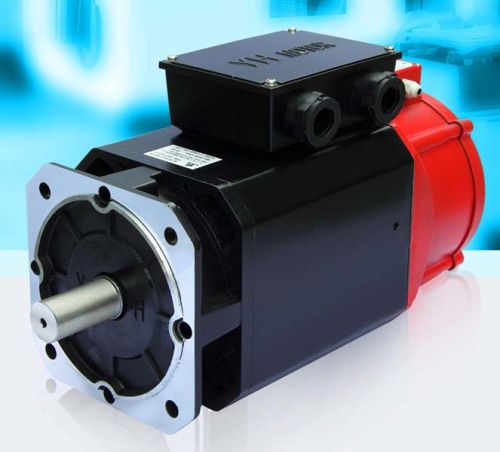

Contact SupplierWe are a leading manufacturer, exporter and supplier of AC Asynchronous Spindle Servo Motor from Wenling City, China. Intense research and design development work goes behind the manufacturing of our AC Asynchronous Spindle Servo Motors. Our Spindle Servo Motors come with an electromagnetic design, high speed photoelectric encoder, high precision bearings and F level insulation. Well-acclaimed for their high-precision and stable operation the AC Asynchronous Spindle Servo Motors we offer can be used for the spindle control in CNC machine tools and the speed control of high performance automation.
| Motor Model | 204ZJY -4 -3, 7- 15- X | 204ZJY -4 -5, 5- 15- X |
|---|---|---|
| Rated Power (Kw) | 3.7 | 5.5 |
| Rated Voltage (V) | 380 | 380 |
| Rated Current (A) | 8 | 11.5 |
| Rated Torque (N.m) | 24 | 35 |
| Rated frequency (Hz) | 50 | 50 |
| Rated speed (rpm) | 1500 | 1500 |
| Max speed (rpm) | 6000 | 6000 |
| Rotor Inertia (G.D2) | 0.01 | 0.02 |
| Fan power (W) | 75 | 75 |
| Fan voltage (v) | 380 | 380 |
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Signal | shielding | Z+ | B+ | A+ | 0V | T | Z- | B- | A- | +5V |
Note: T is the thermal protection switch | ||||||||||
