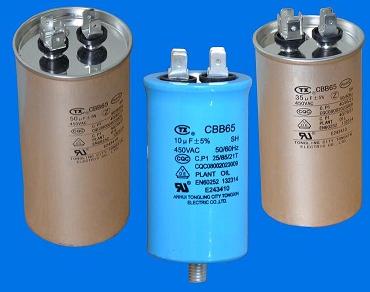

Contact SupplierWe are offering ac capacitor.
features:
this kind of capacitor adopts zinc aluminum edge thickening metalized polypropylene film as dielectric, use for high speed winding machine, aluminium shell rolled closely packaged into, and adopts refined castor oil as impregnant in high temperature and the vacuum macerate process, make capacitors more stable performance, to live longer, and take the second generation of mechanical explosion-proof design, higher reliability.
using:
widely used in household air-conditioner etc frequency for 50hz ac power supply 60hz of single-phase motor start-up and operation, and high-power lamps power factor compensation.
technical specification:
. Standard:gb3667-1997,iec 60252:1993;iec 61048 & 61049:1993
. Climate type:407021,408521
. Capacity deviation:±5%
. Insulation resistance:≥3000s
. Dissipation factor:tgδ≤0.002(50hz~100hz)
. Expected operating life:3000h (class c)or10000h(class b)
use requirement:
. Altitude:≤3000m
. Residual voltage in application:no more than 10% of rated voltage
. The maximum permissible voltage:no more than 1.1 times of rated voltage
. The maximum permissible current:no more than 1.3 times of rated current
