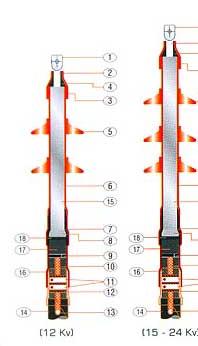

Heat Shrinkable Single Core Cables Termination Kits

Get Latest Price

Driven TypeElectric
CertificationCE Certified, CQC Certified
Power TypeAC
Power0-5Kw, 10-15Kw, 15-20Kw
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location India, Bangladesh, Oman, Saudi Ara bia, United Arab Emirates

View More Details

Send Enquiry

Company Information

DAFFODIL POWER INDUSTRIES PRIVATE LIMITED

Indra Garden, Yamunanagar, Haryana

4.4/5

(25)

View Number

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Driven TypeElectric
FeatureAuto Controller, Dipped In Epoxy Resin, Durable
Total Carbohydrate1Year
Humidity60%, 65%, 70%
Rating100Kvar
Number Of FlowerOutdoor Termination Kit
ApplicationDomestic, Industrial
CertificationCE Certified, CQC Certified
Country of Origin220V
Power TypeAC
Power0-5Kw, 10-15Kw, 15-20Kw

The company is ranked amidst the major Heat Shrinkable Single Core Cables Termination Kits Manufacturers, Exporters and Suppliers in India. The demand for our efficient Heat Shrinkable Single Core Cables has increased tremendously over the time, due to their performance and quality. We offer a wide assortment of Heat Shrinkable Single Core Cables at reasonable prices.
Accessories & Optional Items :

Polymeric Insulators and T Brackets for installation of terminations on single pole are available
Solderless and special purpose earthing kits also available

Electrical Performance

Tests	12 KV System	15-24KV System	36 KV
AC Dry Withstand voltage	35KV/1 minute	50KV/1 Minute	75KV/1 Minute
DC Withstand 30 Minute	48 KV	96 KV	144KV
Lightening Impulse withstand Voltage	75 KV	125 KV	170 KV
Partial Discharge	12.7 Kv < 5 Pc	25 Kv < 5 Pc	38 Kv < 5 Pc

Note :
All kits are supplied with full kit contents for making a termination.Rain sheds for indoor termination 12 kV - No Rain shed, 15 -24 kV -1 No. Rain shed, 36 kV - 2 Nos. Rain shed

Ordering Informations

12 KV System			15-24 KV System			36 KV System
Cable size (sq.mm)	Kit Code		Cable size (sq.mm)	Kit Code		Cable size (sq.mm)	Kit Code
Cable size (sq.mm)	Indoor	Outdoor	Cable size (sq.mm)	Indoor	Outdoor	Cable size (sq.mm)	Indoor	Outdoor
16-50	DXES-11	DXOS-11	16-50	DXES-21	DXOS-21	25-50	DXES-31	DXOS-31
70-120	DXES-12	DXOS-12	70-150	DXES-22	DXOS-22	70-185	DXES-32	DXOS-32
150-300	DXES-13	DXOS-13	185-300	DXES-23	DXOS-23	240-500	DXES-33	DXOS-33
400-630	DXES-14	DXOS-14	400-630	DXES-24	DXOS-24	630-800	DXES-34	DXOS-34
800-1000	DXES-15	DXOS-15	800-1000	DXES-25	DXOS-25	1000	DXES-35	DXOS-35
