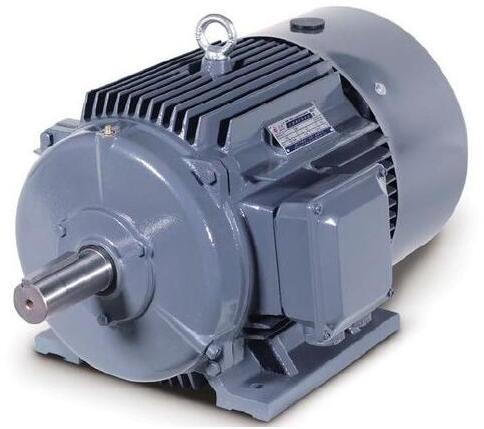

50Hz 60Hz AC Motor, Brand Name : Douli, AC Voltage : 380v 400v

₹ 8,959.50 / Set

MOQ2 Set(s)
Frequency50Hz 60Hz
AC Voltage380v 400v
Brand NameDouli
CertificationCE UL
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of Flowerthree phase induction motor
Brand NameDouli
CertificationCE UL
Country of Origin380v 400v or required
Frequency50Hz 60Hz
Phasethree phase
EfficiencyIE3 high efficiency
AC Voltage380v 400v
Speed3000 1500 1000 750 600r/min
Duty typeS1
Model NumberYE3-801-4
Connection ModeY Delta
Cooling methodIC411
mounting typeIMB3/ IMB5/IMB35/IMV1/IMV3/IMV5

Shanghai Douli Power Co.,Ltd AC Motor details pleases visit: www.doulipower.com
1.Output:0.55~375 kw
2.Pole:2,4,6,8,10 P
3.Frame Size: 80M~355L
4.Protection Class: IP55
5.Enclosure: TEFC
6.IEC 132 frame and larger suitable for Y/Delta starting
Applications: Designed to meet International Standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.
