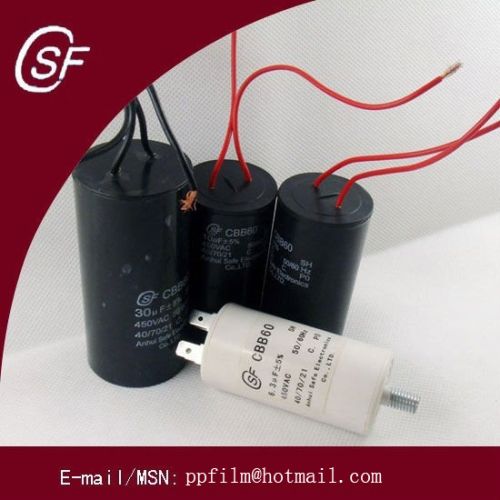

AC Motor Capacitor CBB60

Motor run capacitors Features and use:
It is small in bulk, has long life-span and good self-healing Characteristic. It is widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase water pump motor.
CapacitanceRange 1MFD—100MFD
Capacitance Tolerance +5%,+10%
Rated Alternate Voltage 250Vac, 300Vac, 370Vac, 400Vac, 440Vac, 500Vac
Rated Frequency 50/60 Hz
Dissipation Factors 0.35% Max
Operating Temp. 40/85/21 OR 40/70/21
Case Material PBT, PP, Aluminium, Flammability Class - UL 94 V -2, 750C (RTI)
Dielectric Polypropylene with self healing SH
Termination Tin plated copper or copper alloy, 0.02in (0.51mm) thick minimum Insulated wire (AVL V2) AWM, No.18 or larger, rated 900 C Minimum, rated 600V for plastic case only.
Encapsulation Two component, self-extinguishing epoxy with resin and Harder, plastic, rated minimum UL 94 V-0, 900C minimum (RTI)
TT (Terminal to Terminal) 2 X Rated Voltage
TC (Terminal to Case) Minimum 2000 V AC for 1 Min.
Ref. Standard IEC - 252-1993
Quality System ISO-9001-2008
Approvals CQC,CE,UL,SGS,ISO
Application Electrical motor, pump, washing machine, Power saver
MFD 450VAC 250VAC
D(mm) H(mm) D(mm) H(mm)
1MFD 25 57 25 57
3MFD 25 57 25 57
5MFD 30 70 25 57
8MFD 35 60 35 60
10MFD 35 70 35 60
12MFD 35 70 35 60
15MFD 35 70 35 70
18MFD 40 70 35 70
20MFD 40 70 35 70
25MFD 40 80 35 70
30MFD 45 92 40 70
35MFD 45 92 40 70
40MFD 45 92 40 70
45MFD 45 92 40 70
50MFD 50 92 45 92
55MFD 50 100 45 92
60MFD 50 116 45 92
70MFD 50 116 45 92
80MFD 60 120 50 100
90MFD 60 120 50 100
100MFD 60 120 50 116
