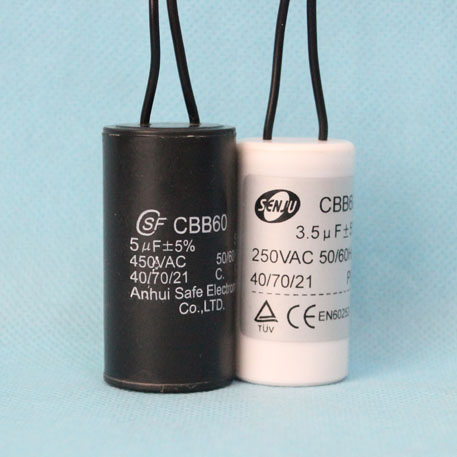

AC Motor Capacitor

the capacitor takes heavy-edge metallized al/zn pp film as electrodes and dielectric. its components are sealed with flame-retardant epoxy resin. it has cylindrical outline with high moisture resistance and stability.
applications
broadly applied to starting and running of ac single-phase motors at 50hz(60hz) frequency for washers and high efficiency compressors of refrigerators etc.
dimensions & specifications (mm)
rated voltage（vac） nominal capacitance（μf） size（mm）
d h
200,250,370,
400,440,450,600
,700,1200 1,1.2,1.5,2,2.5,3,3.5,4,4.5,
5,5.5,6,6.5,7,8,10,10.5,11,
11.5,12,15,16,20,25,30,35,
40,45,50,55,60,
12+6, 10+5.5, 13+6,… 30,32,35,40, 41,43,45,46, 50 47,57,65,73,80,84,85,98,105,110
note:1.terminal leads are wires or 250# (187#) single (dual) tab(s).
2.other dimension serials can be specified in pursuance of customer's request.
