Contact SupplierWe are offering Ac Motor Capacitor for Fan.

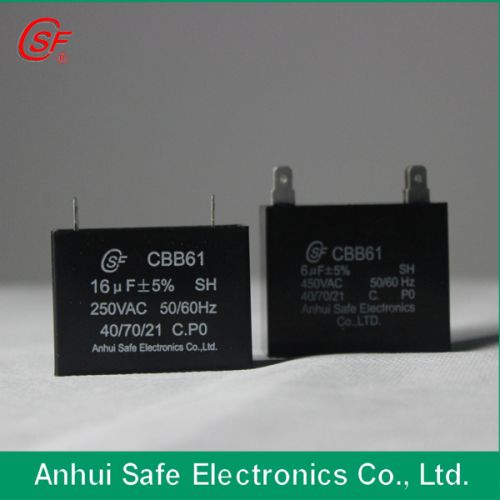

CBB61 capacitor description
CBB61 takes heavy-edge metallized AlZn film as electrodes and dielectric. It is impregnatedwith flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size, reliable performance and long endurance.
CBB61 capacitor data:
Product type polypropylene Film Capacitor
Capacitance range 1uF~16uF
Capacitor Tolerance ±5%
Climate Type 407021 or 408521
Rated Voltage 200VAC,250VAC,370VAC,400VAC,
440VAC,450VAC,500VAC,550VAC,600VAC
630VAC,660VAC
Rated frequency 50Hz60Hz
Operating Temperature -40° C~+70° C -40° C~+85° C
Class of safety protection P0P2
Testing voltage
T-T: 2.0Un60S
Insulation resistance
> =3000s
Tangent of loss angle of a capacitor
tanσ ≤ 0.0020 (100Hz)
Life expectancy
ClassB, ClassC
