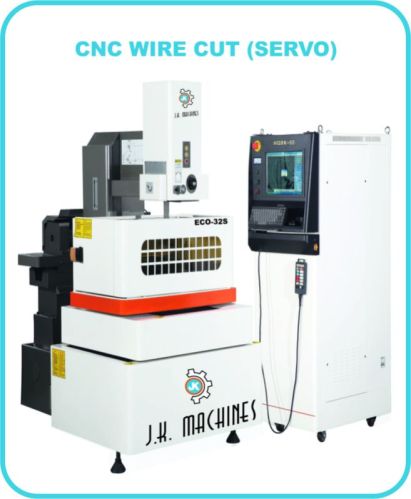

AC Servo CNC Wirecut Machine

Listing ID #6976927

  • MOQ 1 Piece
  • Country of OriginIndia
  • Machine TypeCNC Wirecut Machine
  • Automation GradeSemi-Automatic
  • MaterialMild Steel
  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Manufacturer
  • GST No. 07CNCPS2029A1ZF

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Country of Origin India
  • Machine Type CNC Wirecut Machine
  • Automation Grade Semi-Automatic
  • Material Mild Steel
  • Power Consumption 3 kW
  • Layout Horizontal

Salient Features

  • “C” structure, “I” shape machine bed same as brass WEDM structure
  • Reusable reciprocating technology
  • Linear Guide & Ball Screw for X, Y, U, V, Z Axis & Wire Drum
  • Special industrial computer with LCD color display
  • Panasonic/Mitsubishi AC servo motors with close loop feedback on X,Y Axis
  • Die electric tank with paper filter
  • Multi cut, Multi cavity
  • AutoCut controller system based on Window XP
  • Automatic centerlised lubrication system
  • Automatic wire tension system
  • Motorized Z axis on L. M. guide
  • LED working lamp
  • Program input from USB, LAN online Incremental, Absolute command
  • Linear & Circular interpolation
  • Steps error, backlash error compensation
  • Display of machining time & cutting rate
  • 2D/3D graphic simulation of wire path
  • Display of operator help & error massage
  • Simultaneous control of X,Y,U,V axis
  • Single block execution
  • Rotation/mirror of program
  • Automatic center find, Edge find
  • Wire brake protection mode
  • Auto gap short recovery
  • Alarm light
  • Resumption of cutting from power fail position

Standard Accessories

  • Wire Right Angle Block
  • Drum Handle
  • Molybdenum Wire
  • DIC 206 Fluid
  • Tool Kit
  • Allen Keys
  • Leveling Pads
  • Spanner
  • Scissor

Optional Accessories

  • Bigger Taper
  • Higher Z Height
  • Magnetic Filter
  • U & V Servo


Technical Specification

Specification Unit ECO-35S ECO-45S ECO-50S ECO-63S ECO-80S
Work Table Travel mm 350 x 400 450 x 550 500 x 630 630 x 800 800 x 1000
Work Table Size mm 550 x 800 570 x 880 650 x 1000 850 x 1350 980 x 1580
Max. Workpiece Thickness mm 300 300 300 400 400
Max. Taper Angle °/mm ±3°/80 (±6°/100 & ±10°/120 Optional)
Max. Cutting Speed mm2/mm 300
Positional Accuracy mm ±0.005
Max. Working Current amp 10
Optimum Roughness µ Ra 1.50 Single Cut & 0.60 Multiple cutting
Range of Wire Diameter mm 0.12 - 0.25
Wire Traveling Speed m/mm 45057
Max. Workpiece Weight kg 300 400 600 800 1500
Working Liquid   DM Water
Input Power Supply volt 3 Phase, AC415V/50Hz
Power Consumption kVA 2.5
Machine Dimension mtr 1.8x1.7x1.9 1.9x1.8x1.9 2.0x2.0x2.0 2.4x2.6x2.5 2.5x2.1x2.0
Machine Weight kg 1800 2100 2700 4500 6500
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Electric Discharge Machines (EDM) of the highest calibre are our area of expertise at JK MACHINES in Delhi. We provide cutting-edge solutions to meet the varied needs of our clients in the industrial industry thanks to our expertise and dedication to quality.

We are dedicated to meeting the exact machining demands of our clients by offering durable and efficient Electric Discharge Machines. Modern technology is used in the development of our equipment, guaranteeing high levels of precision, productivity, and durability.

Customized Solutions:

We are aware that every production procedure has unique needs. As a result, we provide our customers with customised solutions that are specially designed and produced to meet each customer\'s individual demands. In order to develop solutions that are precisely created to boost productivity and efficiency, our knowledgeable staff works closely with customers.

Exceptional Service:

We work hard to provide excellent service, offering prompt and trustworthy assistance at every turn, from product selection to installation and after-sales support. Our friendly and knowledgeable team is ready at all times to assist clients and ensure that their needs are met with the highest professionalism.

Industry Expertise:

Our team of experts is very informed and talented in electric discharge machining and has years of experience in the field. We keep abreast of the most recent industry trends, allowing us to offer cutting-edge solutions that fulfil the shifting needs of our clients.



















  • Nature of Business Manufacturer / Exporter / Supplier
  • Number of Employees 20 - 50
  • Year of Establishment 2008
