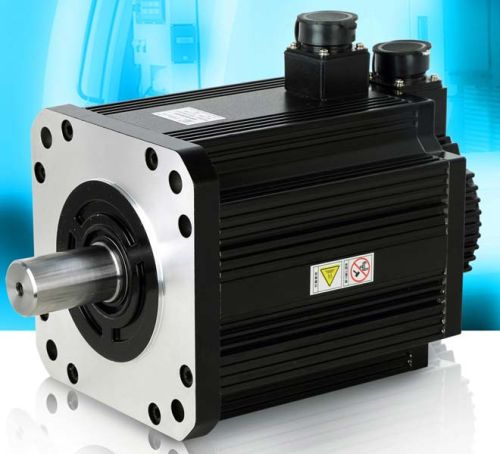

    AC Servo Motor (180SY)

    AC Servo Motor (180SY)

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    We proudly present ourselves as an esteemed manufacturer, supplier and exporter of AC Servo Motor (180SY) from Wenling City, China. The AC Servo Motor comes with 4 Pole pairs, a 17 bit Absolute encoder, an Incremental encoder line of 2500/5000PPR and an Insulation and voltage resistance of AC1500V. The self-cooling structure protects it from over-heating due to temperature surges it undergoes. Manufactured from raw material procured from best-in-industry vendors, the AC Servo Motor has been proven to be safe and highly efficient.
    View More Details
    Send Enquiry

    Company Information

    Sole Motorverified-icon
    location China
    View Number
    • calendar Member Since 10 Years
    • building Nature of Business Supplier

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    Specificaitons

    Motor Model180SY-M17015180SY-M27015180SY-M35015
    Rated Power (Kw)2.74.35.5
    Rated Current (A)10.51619
    Rated Torque (N.m)172735
    Max Torque (N.m)346770
    Rated speed (rpm)150015001500
    Max speed (rpm)180018001800
    Rotor Inertia (KG.m2)3.4x10-36.1x10-38.6x10-3
    Input Voltage (V) (AC 220)
    Motor Weight (Kg)19.525.530.5

    Installation Dimension

    ModelL(mm)L(mm) with brake
    180SY-M17015226306
    180SY-M17015262342
    180SY-M35015292372

    Winding Connection Table

    Winding wireUVWPE
    Socket Number2341

    Braking Lead

    PE

    Brake

    Brake

    Socket Number

    		312

    Note : Brake voltage is DC 24V (Non polar requirement)

    The Encoder Connection Table

    Signal Definitions5VOVA+B+Z+A-B-Z-U+V+W+U-V-W-PE
    Socket Number234567891011121314151
