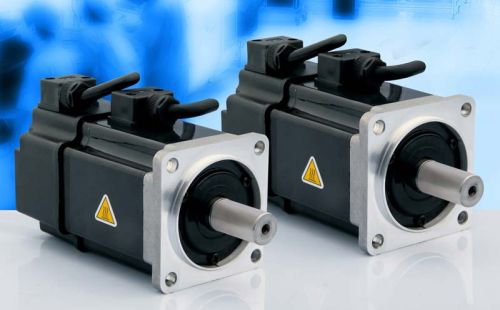

In all types of electrical related industries, AC Servo Motor is an important requirement. We are esteemed to be a leading manufacturer, exporter and supplier of highly efficient AC Servo Motor (60SY) from Wenling City, China. With a working temperature of 0oC – 55oC, these AC Servo Motors are available with a Safety Class of IP54 and an Insulation class – B. The AC Servo Motor comprises of 4 Pole pairs, a 17 bit Absolute encoder and an Incremental encoder line of 2500/5000PPR. These Motors come with good voltage and insulation resistance and are available in a self-cooling structure. We also provide installation services which are performed by highly skilled professionals.
| Motor Model | 60SY-M00630 | 60SY-M01330 | 60SY-M01930 |
|---|---|---|---|
| Rated Power (Kw) | 0.2 | 0.4 | 0.6 |
| Rated Current (A) | 1.3 | 2.5 | 3.7 |
| Rated Torque (N.m) | 0.64 | 1.27 | 1.91 |
| Max Torque (N.m) | 1.91 | 3.81 | 5.4 |
| Rated Speed (rpm) | 3000 | 3000 | 3000 |
| Max speed (rpm) | 3600 | 3600 | 3600 |
| Rotor Inertia (KG.m2) | 0.264x10-4 | 0.407x10-4 | 0.526x10-4 |
| Input Voltage (V) | (AC 220) | ||
| Motor Weight (Kg) | 1.18 | 1.7 | 2.1 |
| Model | L(mm) | L(mm) with brake |
|---|---|---|
| 60SY - M00630 | 110 | 148 |
| 60SY - M01330 | 133 | 181 |
| 60SY – M01930 | 154 | L(mm) with brake |
| Winding wire | U | V | W | PE | |
|---|---|---|---|---|---|
| Socket Number | 1 | 2 | 3 | 4 | |
Note : Brake voltage is DC 24V (Non polar requirement) | |||||
| Signal Definitions | 5V | OV | A+ | B+ | Z+ | A- | B- | Z- | U+ | V+ | W+ | U- | V- | W- | PE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Socket Number | 2 | 3 | 9 | 4 | 7 | 13 | 14 | 5 | 6 | 10 | 11 | 8 | 12 | 15 | 1 |
