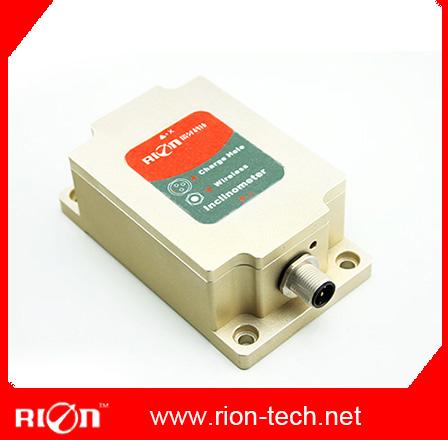

ACA2200T High Frequency Response Precised Digital Inclinometer IP67

₹ 59,607 / Piece

MOQ1 Piece(s)
Output modeRS232、RS485、TTL、PWM are optional
Size110×65×40mm(customized)
Measuring range+/-1 ~+/-90deg optional
Best accuracy0.002deg
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Wide temperature working-40～+85℃
Output modeRS232、RS485、TTL、PWM are optional
response frequencies300Hz
Wide voltage input9～36V
Best accuracy0.002deg
ResolutionResolution: 0.0001°
Measuring range+/-1 ~+/-90deg optional
Size110×65×40mm(customized)
protection classIP67

Features
●Dual-Axis Inclinometer ●Measuring Range :±1～±90° optional
●Response frequence: 300Hz ●Wide voltage input: 9～36V
●Wide temperature working: -40～+85℃ ● Resolution: 0.0001°
● Size:110×65×40mm(customized) ●IP67 protection class ●Output mode RS232、RS485、TTL、PWM are optional ●Water-proof air-plug
Application:
●Engineering vehicles automatic leveling ●Bridge & dam detection
●Precise equipment level control ●Medical facilities angle control
●Underground drill posture navigation ● Railway gauging rule , gauge equipment leveling ●Based on the angle direction measurement ●Geological equipment inclined monitoring
●Directional satellite communications antenna pitching angle measurement
