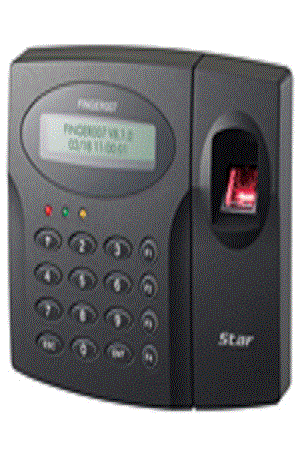

Access Control Systems

We are a leading provider of Video Analytics Software.

Key Feature:

• Multi language display support
• Time Schedule Setting
• Identification is made using only the fingerprint without using any cards or keypads.
• Anti-Pass Back Mode
• RS232, RS422, RS485, TCP/IP(Optional) communication
• Users / Event Buffers : 50,000Users / 50,000 Events
• 1:1 Verification
• Fingerprint & 13.56MHz [MIFARE] Smart Card Reader and Fingerprint Verification
• Read Portable Smart Card that is stored Fingerprint Template programmed on PRG2000B
• Dual Function for Access Control and Time & Attendance
• Dynamic Control of Memory up to 50,000 Users / up to 50,000 Event Buffers (Available on VA.1.0 and up) * 20,000 Users / 30,000 Event Buffers (Buffers (Available on V9.6.0)
• ID only Function for Fingerprint Unregisterable Person through Smart Card is programmed by PRG2000B
• Decode Encrypted Biometrics Data using Patented Encryption Algorithm
• Protected ID and Fingerprint Template Copy
• Support STAR PRG2000B Programmer with ID & Fingerprint Template issuing Software
• Standalone / Network Communication via RS232 / RS422 / RS485 (Max.32ch) - RS485 is not available on VA.1.0 and up
• TCP/IP Communication supported - VA.1.0 and above : Internal LAN module required(optional) - V9.6.0 and below : External Converter required(optional)
• Independent 4 Inputs and 4 Outputs including 2ea of 2 Form-C Relay Outputs
• 1ea of External Reader Port for Anti-passback Function: 26bit Wiegand, 4 / 8bit Burst for PIN
• No need to manage Fingerprint Templates
• Flexible Quality Solution to suit Any Applications
• Secure Sign-on Facility
• High Protection from Scratch and ESD (Electro Static Discharge)
• High Quality Optical Sensor
• Dual Tamper Switches
• Mode Selection: SMART only / SMART P/W (4digit) SMART Fingerprint / SMART P/W (4digit) Fingerprint
• Compatible Software: IDTECK DUAL PRO I / II, IDTECK STANDARD
• Compatible Reader: SR10B, SR30B, SRK101B
