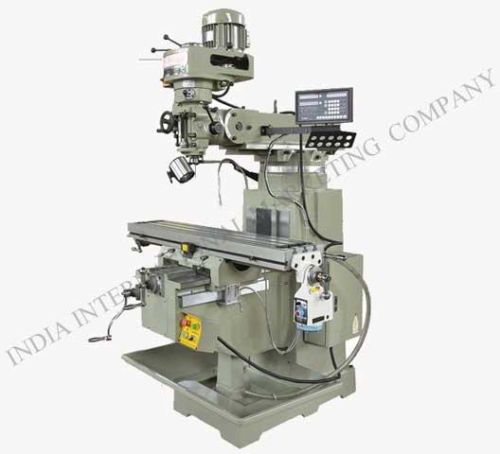

Milling Machines have been designed to give its user with accurate and precise results. It has 55 degree dovetail Y-Axis and Z-axis guide way, making the machine more stable and easy to adjust. The guide way on saddle is lined with TF wearable material. The worktable surface and 3 axis guides way are hardened and precisely ground.
 Salient Features
Â
• Adjustable double Nut design for minimal backlash
• Double Lock on saddle, Ram & Knee
• X-axis & Y-axis lined with Turcite B Coating.
• Double speed motor for high RPM
• Built in standard coolant tank in the base of machine
• Electrical panel box fuse, overhauling
• Relays etc. of Siemen’s make with ‘CE’ mark
• Hardened & Ground X & Y slide ways
Â
Â
| SPECIFICATIONS | NO:3 | NO:4 | |
| Table size(mm) | 254x1270 (10"x50") | 254x1370 (10"x50") | |
| Longitudinal Travel (mm) | 850 | 980 | |
| Cross Travel (mm) | 385 | 400 | |
| Vertical Travel(mm) 3 numbers | 380 | 400 | |
| Table T-slots(mm) 3 numbers | 16x3x63 | 16x3x63 | |
| Spindle Motor (H.P.) | 3 | 3 | |
| Spindle Speed (RPM) | 16 Steps / 50-3500 | 16 Steps / 50-3500 | |
| Spindle Taper | R8 | R8 | |
| Spindle Nose to table Top (mm.) | 0-428 | 0-428 | |
| Spindle Centre to Column Surface (mm). | 200-680 | 200-680 | |
| Quill Travel (mm) | 127 | 127 | |
| Auto Quill Feeds (per revolution)mm | 0.40/0.08/0.15 | 0.40/0.08/0.15 | |
| Head Swivel | (RxL)90 degree / (FxB) 45 degree | (RxL)90 degree / (FxB) 45 degree | |
| Ram Travel (mm) | 480 | 480 | |
| Net Weight (kgs.) | 1280/1380kgs | 1280/1380kgs | |
| Y – Axis | Dovetail Guide Way | Dovetail Guide Way | |
| Z – Axis | 55dg. Swallow tail or Square Guideway | 55dg. Swallow tail or Square Guideway |
