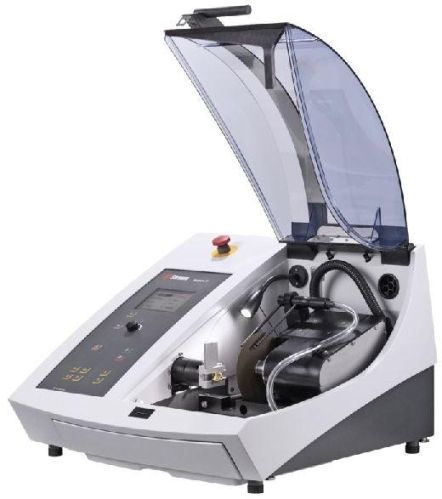

Accutom-10 Precision Table Top Cut-off Machine

Accutom-10 is a precision table top cut-off machine for precise and deformation-free cutting. Equipped with sample rotation or oscillation. The use of stepper motors to control the movement of the sample in both X- and Y-directions enables very precise positioning in Accutom-10. The high resolution of the stepper motor makes it possible to position the sample with an extraordinary precision of 5µm. In Accutom-10, the feed speed can be pre-set and controlled in the range of 0.005 to 3 mmsec. This wide range allows even the most delicate materials to be cut. The motor of Accutom-10 has variable cut-off wheel speeds from 300 up to 3000 rpm in steps of 100 rpm. This allows both high and low speed cutting and enables a more accurate choice of wheel speed for different cut-off wheel diameters. Accutom-10 is operated from rotating Push knob & a touch pad on the ergonomically designed, slanting front. All parameters, both for positioning and cutting, are presented on the Larger colour Display.
