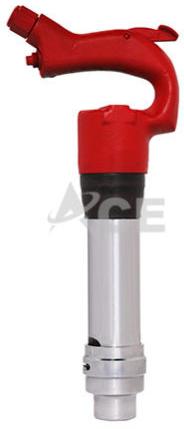

ACE CH-3 RS (CP 4123 3R) Chipping Hammer

Frequency2500 BPM
Shank Size17.27 mm / 0.680 Inch
ModelACE CH-3 RS
Length427 mm / 16 7/8 Inch
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Frequency2500 BPM
Hose Size12.7 mm / 1/2 Inch
Piston Diameter28.6 mm / 11/8 Inch
Shank Size17.27 mm / 0.680 Inch
ModelACE CH-3 RS
Length427 mm / 16 7/8 Inch
Air Consumption0.90 m 3 /min / 31.8 CFM
Net Weight7.33 Kg / 16.1 Lbs
Stroke76.20 mm / 3 Inch

ACE PNEUMATICS chipping hammers are a durable tool which has been designed for rugged use in foundries, fabrication shops and construction applications. It is particularly suitable for working with relatively hard concrete in demolition, pile-capping or bridge deck applications.
Features:-

Swan Neck Handle
Long Nozzle For Extra Life
Outside Trigger
Excellent Durability

Technical Specification

MODEL	NET WEIGHT	LENGTH	SHANK SIZE	PISTON DIA	STROKE	FREQUENCY	Air Consumption	HOSE SIZE
-	Kg (Ib)	Mm (in)	ROUND	Mm(in)	Mm(in)	b.p.m	(m3/min) (cfm)	Mm(in)
ACE CH-3 RS	7.33 16.1	427 (16 7/8)	(MM) (IN) 17.27 0.680	28.6 (1 1/8)	76.20 (3)	2500	0.90 31.8	12.7 (1/2)
