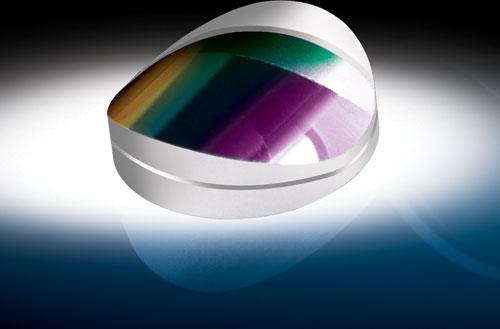

Glass surfaces polished Achromatic Cylindrical Optical Lens

MaterialGlass
Finishingsurfaces polished
ShapeCylindrical
Length90 mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Technical Specification

Part No.	L × W	F	R1	R2	R3	Tc1	Tc2	Tc	Material
ACL001	5.0×5.0	7.5	5.25	-3.9	-17.06	2.8	1.7	3.7	N-BAF10-N-SF6HT
ACL002	5.0×5.0	10	6.55	-4.25	-15.42	2.5	1.9	3.7	N-BAK4-SF5
ACL003	5.0×5.0	15	12.54	-5.25	-12.05	2.7	2.1	4.3	N-BK7-SF2
ACL004	6.0×6.0	10	6.17	-4.61	-19.63	2.5	1.5	3	N-BAK4-SF5
ACL005	6.35×6.35	12.7	7.08	-5.94	-40.36	2.5	1.5	3.1	N-BAK4-SF5
ACL006	6.35×6.35	15	8.79	-6.55	-21.68	2.5	1.5	3.2	N-BK7-SF2
ACL007	8.0×8.0	10	7.08	-5.25	-22.66	4.5	2	4.9	N-BAF10-N-SF6HT
ACL008	8.0×8.0	16	11.02	-9.2	-46.77	2.5	1.5	3.1	N-BAF10-N-SF6HT
ACL009	8.0×8.0	20	11.08	-9.2	-34.83	2.5	1.5	3	N-BK7-SF2
ACL010	12.7×12.7	19	12.94	-11.04	-59.26	4.5	1.5	4	N-BAF10-N-SF6HT
ACL011	12.7×12.7	25	18.79	-10.59	-68.08	5	2	5.6	N-BAF10-SF10
ACL012	12.7×12.7	30	17.86	-13.53	-44.17	3.5	1.5	3.4	N-BK7-SF2
ACL013	12.7×12.7	50	27.36	-22.54	-91.83	3.5	1.5	4	N-BK7-SF2
ACL014	12.7×12.7	75	41.3	-33.96	-137.09	2.5	1.5	3.4	N-BK7-SF2
ACL015	25.4×25.4	30	20.89	-16.73	-79.8	12	2	8.8	N-BAF10-N-SF6HT
ACL016	25.4×25.4	35	23.99	-19.1	-102.09	12	2	9.6	N-BAF10-N-SF6HT
ACL017	25.4×25.4	40	23.66	-20.09	-57.68	10	2.5	7.4	N-BK7-SF5
ACL018	25.4×25.4	45	31.24	-25.94	-130.62	7	2	5.7	N-BAF10-N-SF6HT
ACL019	25.4×25.4	50	33.34	-22.28	-291.07	9	2.5	8.7	N-BAF10-SF10
ACL020	25.4×25.4	60	41.69	-25.88	-230.7	8	2.5	8.2	E-BAF11-FD10
ACL021	25.4×25.4	75	46.54	-33.91	-95.54	7	2.5	6.9	N-BK7-SF5
ACL022	25.4×25.4	100	62.75	-45.71	-128.23	4	2.5	4.7	N-BK7-SF5
ACL023	25.4×25.4	150	91.62	-66.68	-197.7	5.7	2.2	6.6	N-BK7-SF5
ACL024	25.4×25.4	200	77.4	-87.57	291.07	4	2.5	5.7	N-SSK5-LAFN7
ACL025	25.4×25.4	250	137.09	-111.51	-459.2	4	2	5.2	N-BK7-SF2
ACL026	25.4×25.4	300	165.2	-137.09	-557.4	4	2	5.4	N-BK7-SF2
ACL027	25.4×25.4	400	219.8	-181.55	-738.5	4	2	5.5	N-BK7-SF2
ACL028	25.4×25.4	500	337.3	-186.75	-557.4	4	2	5.6	N-BK7-SF2
ACL029	30.0×30.0	50	34.04	-29.38	-161.5	8.5	2	6.3	N-BAF10-N-SF6HT
ACL030	30.0×30.0	80	55.98	-44.17	-219.8	8.5	2	7.9	N-BAF10-N-SF6HT
ACL031	30.0×30.0	100	70	-57.02	-284.4	5	2	5	N-BAF10-N-SF6HT
ACL032	50.8×50.8	75	50.8	-41.69	-247.7	20	3	14.9	E-BAF11-N-SF11
ACL033	50.8×50.8	80	54.9	-46.4	-247.2	16	2	10.5	N-BAF10-N-SF6HT
ACL034	50.8×50.8	100	71.12	-44.17	-363.1	16	4	14.4	N-BAF10-SF10
ACL035	50.8×50.8	150	83.18	-71.12	-247.7	12	3	9.7	N-BK7-SF5
ACL036	50.8×50.8	200	109.86	-93.11	-376.25	8.5	2	6.7	N-BK7-SF2
ACL037	50.8×50.8	250	137.09	-111.69	-459.2	7.5	2	6.4	N-BK7-SF2
ACL038	50.8×50.8	300	161.5	-134	-580.8	6	2	5.4	N-BK7-SF2
ACL039	50.8×50.8	400	219.8	-186.75	-760	5	2	5.1	N-BK7-SF2
ACL040	50.8×50.8	500	272.9	-234.27	-970	5	2	5.5	N-BK7-SF2
ACL041	50.8×50.8	750	417.8	-336	-1330.5	4.5	2	5.5	N-BK7-SF2
ACL042	50.8×50.8	1000	738.5	-398.1	-1023.3	4	2	5.2	N-BK7-SF2
