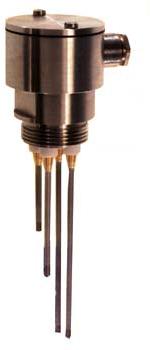

Acid Level Sensor

Protocontrol offers level sensor for acids. It is based upon the principle of conductivity. For sensing level of conducting non sticky clear liquids like water, Acid, Salt & various chemicals, Sugar solutions, Milk, Juice etc.
Features :
1.Simple, low cost level controller
2.Automatically controls liquid levels in any container.
3.Quick installation
4.Low current operated circuit ensures personnel safety.
5.Wide range of electrodes with different mounting configuration, constructions to suit
every application.
Operating principle :
A conductive Level switch operates on the base of conductive principle. These are equipped with two or more electrodes (one is ground and others are sensing electrodes). When a conductive fluid comes in contact with two or more of sensing electrodes, an electric circuit is completed. A very small alternating voltage is applied to two probes tips. The circuit gets closed by liquid when liquid touches the probe tip. The voltage & current
used are so small that no dangerous shock can occur. The use of alternating voltage prevents deposition and electrolysis.
