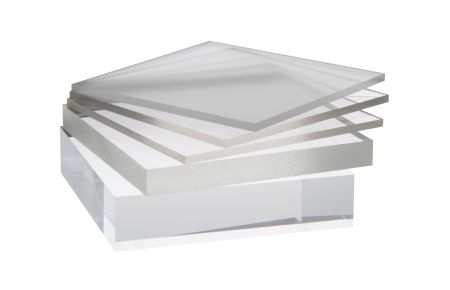

ACRYLIC CAST CLEAR SHEET

• Thermoformable
• Lightweight and rigid
• Low water absorption
• Excellent optical properties
• More impact resistant than glass
• Good electrical and UV resistivity
• Easy to glue, hot air weld and machine
• Outstanding resistance to long-term exposure to sunlight and weathering
Dimension Information:
Acrylic sheet thickness tolerances are +- 10% and can vary throughout the sheet, but variations are typically less than 5%. Please refer to nominal and actual sheet thicknesses below.
0.06" = 1.5mm
18" = 3mm = 0.118"
316" = 4.5mm = 0.177"
14" = 5.5mm = 0.217"
38" = 9mm = 0.354"
12" = 12mm = 0.472"
34" = 18mm = 0.709"
1" = 24mm = 0.945"
1.25” = 30mm = 1.18”
1.5” = 38mm = 1.50”
2” = 50mm = 1.97”
3” = 75mm = 2.95”
