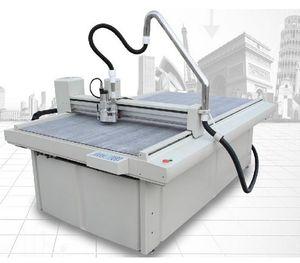

Acrylic Quilting Template Router Cutter

We offer Acrylic Quilting Template Router Cutter.
Totally computer graphics output, acrylic and MDF quilting template can be effciently and accurately cut by CUTCNC quilting template router cutter.
Widely applied in garment and handbag factory, CUTCNC acrylic quilting template router cutter cut sewing stencil from acrylic board, MDF, and various solid PVC boards to help worker easily confirm the sewing position. With basic training, workers with no experience can handle the job perfectly. Especially for curved stitching, our clothing acrylic stitching template CNC digital router cutter not only highly improves the efficiency and accuracy, but reduces the dependence on skilled workers.
Advantages of CUTCNC acrylic quilting template router cutter:
1) Optimize clothing production line
2) Improve production efficiency
3) Ensure clothing quality
4) Reduce labor cost
5) Save much cost on many other expensive equipments, such as pocket-hole sewing machine,sleeve joining machine, pleating machine,etc;
Specifications:
Model
DCF10-1509
DCF10-1512
DCF10-1809
Effective Cutting Area
1500*900mm
1500*1200mm
1800*900mm
Configuration
Router, Pen
Driver
Step Motor
Way of Absorbing
Vacuum
Cutting Material
Acrylic board, PVC board, MDF, etc
Max Speed
400mms
Router Speed
25000RPM
Max Cutting Thickness
10mm
Precision
≤0.1mm
Data Port
Serial Port,Parallel Port,USB
Instruction Set
HPGL or DXF, Compatible With Any CAD Software
Voltage
220V±10%50HZ
Occupy Dimension(L*W*H)
2200*1700*1700mm
2200*2000*1700mm
2500*1700*1700mm
Note:Other sizes can be customized, the max. table is 3500*2000mm.
