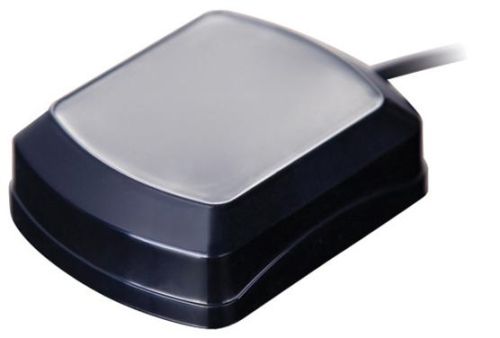

Active GPS Antenna 43x33x14mm

We are offering gps active antenna.
specifications
item
specifications
antenna
center frequency
1575.42±1mhz
band width
cf±5mhz
polarization
rhcp
gain
5dbic（zenith）
v.s.w.r
＜1.5
impendance
50ω
axial ratio
3db（max）
dimension
39*49*15mm
lna
gain
28±2db
noise figure
＜1.5
filter insertion loss
＜3db
ex-band attenuation
12db@cf+50mhz16db@cf-50mhz
supply voltage
2.2~5v dc
current consumption
5~15ma
v.s.w.r
＜2.0
mechanical
cable
rg174
connector
smamcxfakra or others
radome material
abs
mounting method
magnetadhesive
environmental
operating temperature
-40℃~+85℃
relative humidity
up to 95%
ingress protection
ip65~ip67
vibration
10 to 55hz with 1.5mm amplitude 2hours
environmentally friendly
rohs compliant.
