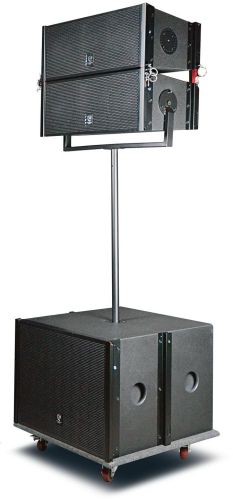

Active Line Array Speaker, Brand Name : Dimuk

The Dline281 is a 2 –way design using CCT (Coverage Control Technology) to control horizontal coverage to 200 Hz. It uses an 8" neodymium LF transducer, an 8" neodymium LFMB transducer, and two neodymium 1.7" voice coil compression drivers combining through 2 hydra plane wave generators into a 120° x 10° waveguide. CCT uses both 8" transducers to provide maximum low frequency output and operating bandwidth while controlling horizontal beam width to 200 Hz by using DSP. the XLD281 delivers full bandwidth audio with precise, predictable coverage control. Integrated rigging with hinge points located correctly between array elements is simple to use and quickly provides uncompromised line array performance. XLD-281A
Same features of XLD-281 but with a built-in HHD device having a class D amplifier of 500 W for the low section and 200 W for the high section
Applications
The XLD 281 delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues, to houses of worship.
The recommended minimum XLD281 array size is four enclosures. For full performance eight enclo-sures are recommended. To extend the low frequency response, The XLD 312 make an ideal complement to the XLD281 Series.Also can add DS-218 or TS-218 to have excellent low frequency response .
Specifications
speaker
Compoents : LF 2x8" neodymium HF2x1.7" neodymium
Output watts : LF 400W RMS HF 120W RMS
Sensitivity: LF 116db HF 120db 1W@1m
MAX SPL: 128db
Frequency Range: 70HZ-18KHZ
Cover Range Angle : H 120 V Array Dependant, Software Definable
Impedance : 8 ohms
ConnecterS: Female for active NL4 for passive
Dimensions: 251 x 726 x 369 mm
Weight : 26.5kg
Amplifer Mould
LF power :500W
MF power : 200W
Input type: Balanced
Input impedance :line 20KOHMs
Rrequency Range: 70HZ-18KHZ
Connecter input: Female
Power : AC 230V 50HZ or 110V 60H
