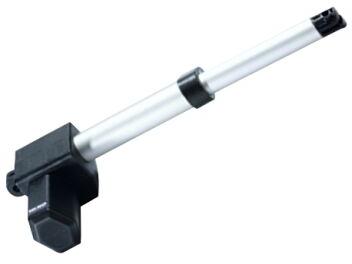

OKIN Actuator

Overview
quick details
place of origin:
china (mainland)
brand name:
meters
model number:
mtr3023
usage:
operation bed
certification:
ce
type:
micro motor
torque:
push 6000n
construction:
series wound
commutation:
brush
protect feature:
waterproof
speed(rpm):
12v24v110v dc
continuous current(a):
12v24v110v dc
output power:
12v24v110v dc
voltage(v):
12v
efficiency:
ie 1
max load:
push 6000n pull 4000n
packaging & delivery
packaging details
each set with color box and then in master carton.
Delivery time
30 days
product description
mtr3023 actuators for operation table
input voltage: 12v24v110v dc
max. Load: push 6000n pull 4000 n
max. Speed: 42 mms
stroke: 26-1000 mm
mininum installation distance: stroke+ 160mm
duty cycle: 10% stop for 18 minutes after continuously working 2 minutes
limit switches: built in, factory preset
operation temperature: -20 +40
noise decibel: small than 48db
protection class: ip44
rear connector: 90 rotation available
color: black grey
