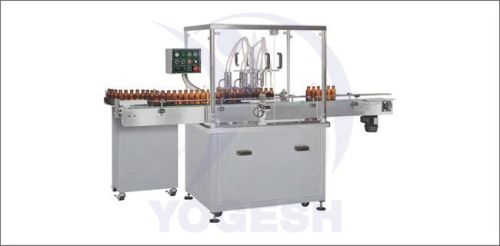

ACUMAC Stainless Steel LIQUID BOTTLES FILLING MACHINE, Certification : CE Certified

AUTOMATIC VOLUMETRIC LIQUID BOTTLES FILLING MACHINE

The automatic volumetric liquid bottles filling machine is specially manufactured from high grade raw material. The stainless steel, matt finish body, S.S. slat conveyor, reciprocating nozzle with self- centering devices and S.S. syringe. The conveyor drive and the main drive of the machine consist of A/C motor with synchronized variable A/C frequency drive. The machine is working on the volumetric principle.

HOW TO OPERATE :

The S.S. slat conveyor is used to move the containers. The twin pneumatically operated stopper system is used to fill the bottles. The reciprocating nozzles can precisely match for the centering of container bellow nozzles. This adjustment helps to avoid the spilage of liquid on container. During filling, the nozzle goes upwards slowly from bottom to neck to minimize the foaming. The nozzle can adjust according to the filling dose. The fill size can be set through the hexagonal bolt fitted below syringes.

THE FEATURES :

• Very much accurate, ±1% filling accuracy.
• Vibration free construction
• Error code display
• The platform is provided with drain tray round it, and drip tray under the conveyor
•  The perfect pneumatic arrangement for bottle stopping
• The conveyor gear box, motor and pneumatic cylinders are provided with the safety guard.
• To prevent from the short circuit and over load, the MCB is given.
• For the voltage fluctuation and short circuit in A/C frequency drive there is inbuilt protection, with machine
• No bottle no filing system
• Trouble free performance with low maintenance
• Easy control panel
• The self lubricating UHMW-PE guide profile for S.S. slat chain.
• Low friction wear surface, smooth and noiseless conveying.
• It takes minimum time to change the apparatus

OPTIONAL FEATURES :

• For the conveyor belt the automatic chain washing system is there.
• In-built pre-inspection.
• The cabinet and conveyor covers are of acrylic.
• Nitrogen flushing
• The float tank is available with or without stirrer.

UTILITY REQUIREMENT :

Electrical Supply : Three Phase + Neutral + Earthing
Electrical Load : 2 KW
Air Pressure : 6 bar pressure 0.5 CFM
