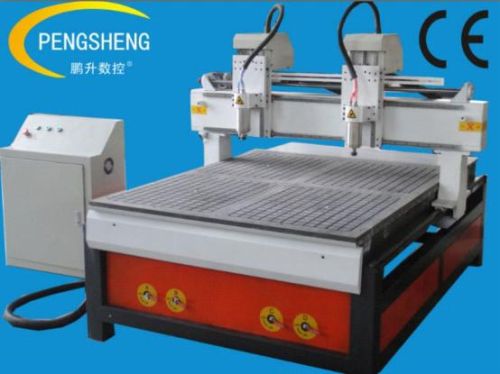

Ad Carving Machine

₹ 2.73 Lakh / 100000 100000 Piece

MOQ1 Piece(s)
Resolution 0.02mm
Max speed 15m/min
Interface USB
Z working area 120mm/200mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Table size 1440mm*1480mm
Diameter of cutter 3.175--12.7
Resolution 0.02mm
X,Y structure Imported ball screw
Spindle power 2.2kw
Spindle rotating speed0-24000r/min
Drive Motor Stepper
Z structure Imported ball screw
Operating system DSP(with separate operation cabinet)
Interface USB
Work-holding By suction
Z working area 120mm/200mm
Max speed 15m/min
X.Y working area 500mm*1300mm for single spindle working separately
Cooling mode Water cooling
Flash Memory 128M
Command G code*.u00*.mmg*plt
Working voltage AC220V/50/60 Hz ,2PH

We are offering ad carving machine.
whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed.
two spindles can be working synchronously as well as separately.
the machine adopts gantry movement,it can process any kinds of materials freely.
three axes adopt imported high precision taiwan square orbit;x ,y and z axis adopts imported ball screw,with high precision and long life time.
x ,z axes are dustproof.it makes sure the steady working performance of the machine for long-term using.
adopting advanced dsp system with usb connection,operated with the handle,convenient operation.our engaber can completely work off-line and do not take any computer resources.
well compatibility:cad/cam designing software e.g. type3/artcam/castmate/wentai etc.
has the function of forecasting process time.
high precision,the curving and linear speeds are consistent.adopting excellent parts makes the fault rate to be the lowest one.
