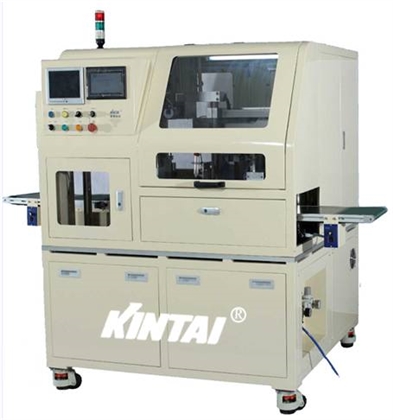

Adhesive Dispenser

₹ 2.67 Lakh / Set

MOQ1 Set(s)
Dispensing speed15-40MM/S (adjustable upon dispensing effect)
UV-cure System( point light)
Repeatability Accuracy+/-0.1mm；
Fluid dispensedUV-cure Adhesives ( viscosity ≤8000 CP）
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Positioning modeCCD visual positioning
UV-cure System( point light)
External dimensionsL1280Xw1220xH1720mm;
Repeatability Accuracy+/-0.1mm；
Lamp’s working lifetime2000Hour
Fluid dispensedUV-cure Adhesives ( viscosity ≤8000 CP）
Lamp power200W
Repeatability Accuracy+/-0.1mm；
Max. powerlight intensity 2000Mw/cm2
Cure range50mm*2mm
Pneumatic supplypositive pressure 0.5~0.7MPa，vacuum pressure- 84 ~ - 101KPa
Power consumption2.5KW，15A;
Power supplysingle phase AC220V，10A ,50Hz;
Dispensing speed15-40MM/S (adjustable upon dispensing effect)

Intelligent dispenser JTA-01MD
1. Automatically dispense/seal IC protective adhesives on LCD module( front side)
2. Contact and non-contact dispensing modes optional
3. CCD visual intelligent positioning ensures fast and accurate alignment
4. Fluids suitable for dispensing: Silicone Gels, UV-cure Adhesives, epoxy resinÃ¢ï¿½Â¦Ã¢ï¿½Â¦
5. On-line design integrates front-back sides ofthe assembly line, thus realize automatic loading and unloading
6. Compatible with a wide range of equipment
7. Patented intelligent software of sealing make debugging easy and convenient
8. Patented designs simplify operation processes and improve reliability
