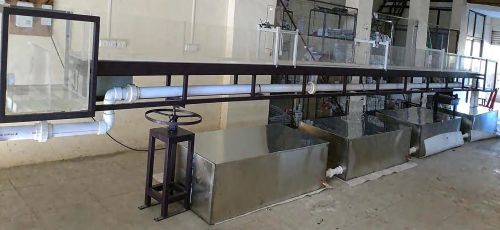

Adjustable Bed Flow Channel Unit Model FM 32 15M to 20M

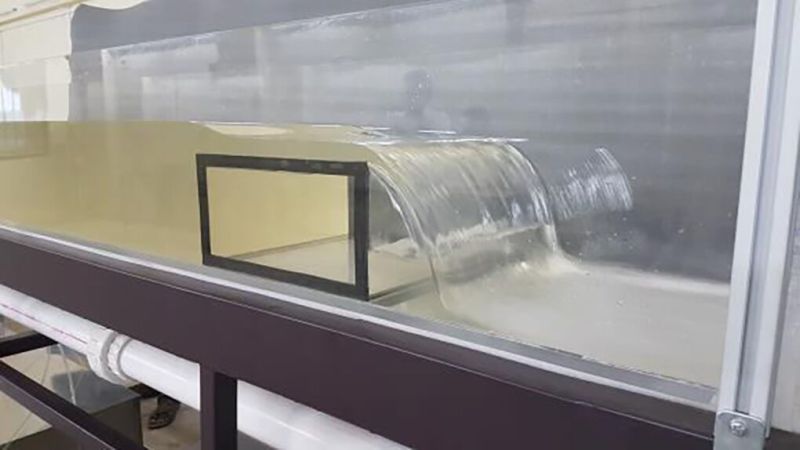

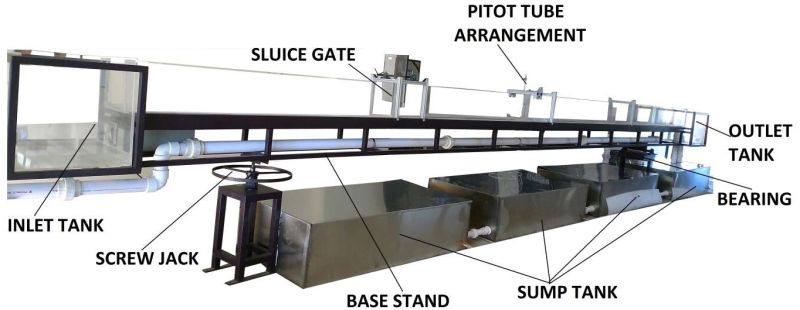

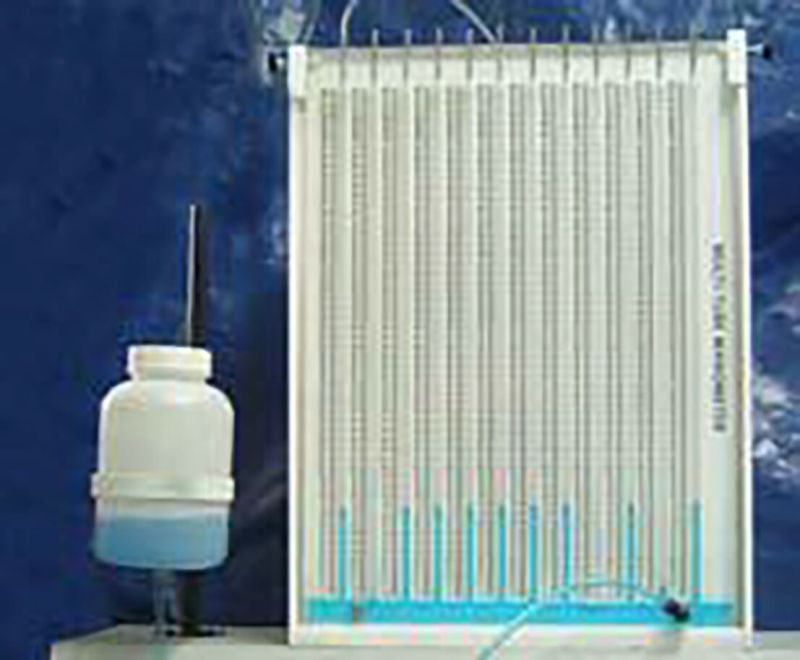

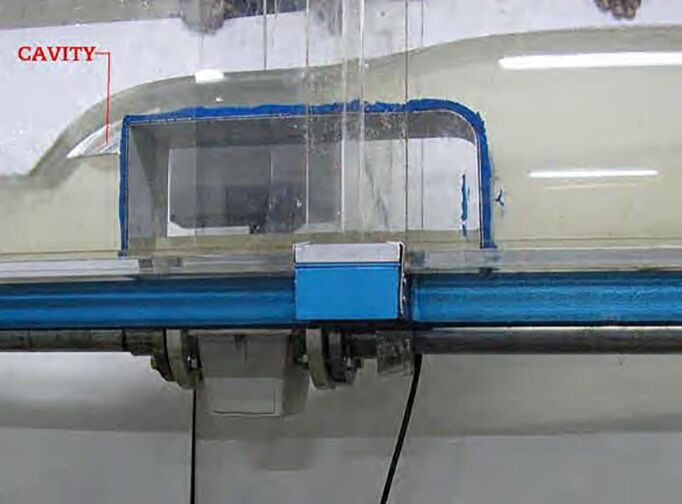

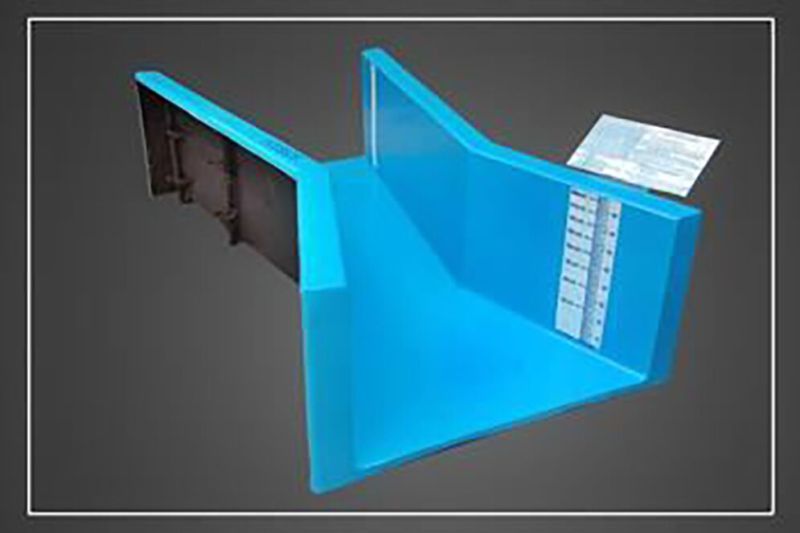

The Sci-tech Adjustable Bed Flow Channel Unit Model FM 32 - 15M to 20M is suitable for demonstrations and teaching of open channel flows. By closing the top of the channel, the unit can also be used to demonstrate duct flows. The complete unit is mounted on a mobile platform fixed on castor wheels. The apparatus is self-sufficient with water recirculation system consisting of flow inlet tank, centrifugal pump, flow control valves, discharge tank, water flow meter and sump tank. The inlet tank consists of baffle plate and screens to reduce disturbances in the flow. The discharge tank consists of adjustable overflow weir which can be adjusted to control flow conditions in the working section. The working section is transparent and is made of clear acrylic. Other components of the unit are made of corrosion resistant materials. Experiments can be conducted in both open channel flow and duct flow modes. The channel consists of adjustable floor section which along with the transition section can be raised or lowered using suitable inserts. The combination of adjustable floor and upper boundary plate enable formation of various types of ducts to conduct experiments. Flow control valve is provided upstream of the inlet tank control flow rate. The mid-section of the upper boundary wall is made removable for fast changing and installation of models in the working section. Total pressure probes and static pressure tapings are provided at five locations along the working section. Total pressure probes can be moved vertically and fixed at different positions over the depth of the channel. Different models, such as hump, weirs etc., required to carry out studies mentioned in the list of experiments are supplied. Provision is made to fix models in the working section using suitable fixtures.   Specifications for Channel Flume: General:   Open channel flow and duct flow modes of operation. Self-contained unit consisting of diaphragm flow control valve, inlet tank with baffle plate and screens, centrifugal pump, flow meter, discharge tank with adjustable overflow weir and sump tank. Transition section and adjustable floor section. Floor inserts for converging and converging-diverging duct flows. Upper boundary plate. Weirs as per accessories list Models: hump, sluice gate, etc. Model fixtures as per accessories list. Pressure probes with fixtures to vary position.  Static pressure taps. Specifications 1.               Walls Toughened glass: 10 ~ 12mm thick 2.               Bed exclusively fabricated from 1.5 ~ 2mm stainless steel 3.               End Tanks FRP (Fiberglass Reinforced Plastic) 4.               Sump tanks in SS & pipe network PVC (Polyvinyl Chloride) & PE (polyethylene) 5.               Pump Close-coupled centrifugal 6.               Flow regulation valve Hand wheel operated butterfly valve 7.               Tilt parameters +ve slope 20 & -ve slope max 10 8.               Flow meter Electromagnetic 9.               Maximum flow rate 30 Litres/sec 10.            Bed stability 1.0mm (typical) at 400mm water depth 11.            Side wall stability 0.5mm (typical) at 400mm water depth 12.            Width 0.3m Depth 0.45m 13.            Electric supply 3Ph, 50Hz 14.            Pitot tube and manometer 15.            Culvert fitting, one edge square, one rounded 16.            Flow splitters, central wall with various nose pieces 17.          Free overflow spill complete with ski jump, sloping apron and bleed reverse curvature attachments 18.            Syphon spillway and air regulated syphon 19.            Differential pressure sensor for use with Pitot tube 20.            Wave generator and wave absorbing beach 21.          Comprises two beds of different roughness. Gravel Bed and Corrugated Bed.(Model 32RB). Each 2.5m long consists of three sections additional total 6 sections additional. 22.            False floor sections for gradually varied profiles 23.            Spirit level mounted on every 2.5m section 24.            2
