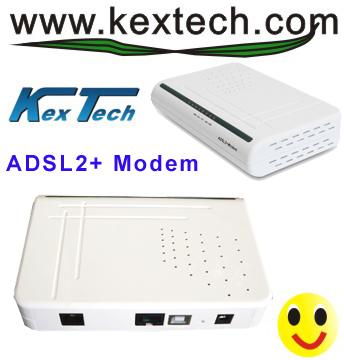

ADSL Modem

ADSL Compliance
RADSL (ANSI T1.413 Issue 2)
G.dmt ADSL over POTS (G.992.1 Annex A)
G.dmt ADSL over ISDN (G.992.1 Annex B and U-R2)
G.lite (G.992.2)
G.hs (G.994.1)
Auto-negotiating rate adaptation
ADSL2 G.dmt.bis(G.992.3)
ADSL2 G.lite.bis(G.992.4)
ADSL2+ (G.992.5)
Reach Extended ADSL(RE ADSL)
Speed support of 12Mbps (ADSL2) or 24Mbps (ADSL2+)
ATM Supports
8 PVCs Support
RFC 1483/2684 Multiple Protocol over AAL5
VC and LLC Multiplexing
Traffic Shaping UBR,CBR,VBR-nrt
ATM Forum UNI 3.1/4.0 PVC
I.610 OAM F4/F5 loop-back, AIS, and RDI OAM cells
PPP Support
PPP (RFC 1661)
PPP over AAL5 (RFC 2364)
PPP over Ethernet (RFC 2516)
PAP Authentication (RFC 1334)
CHAP Authentication (RFC 1994)
Network Protocols
IEEE 802.1d Transparent Bridging
802.1q Pass-through Bridge
Up to 256 MAC Learning Address
IP Routing: TCP, UDP, ICMP, ARP
RIPv1 and RIPv2
Static Route
IP Multicast IGMP v1/v2
IP Policy Route
IP Management
SUA (Single User Account)
Multi-NAT (Network Address Translation)
Multimedia Support
VPN ( IPSec,PPTP,L2TP Pass-through
DHCP Server/Relay/Client
IP Alias
DNS Proxy
Dynamic DNS
UPnP Support
Network Management
Web-based Configuration
Command-line Interpreter(CLI)
Telnet Remote Management
SNMP MIB Support
FTP/TFTP firmware upgrade and configuration backup/restore
Built-in Diagnostic Tool
Security
Password-protected System Management Terminal
PAP(Password Authentication Protocol)
CHAP(Challenge Handshake Authentication Protocol)
Microsoft CHAP
IP Packet Filtering for Access Control
Hardware specification
ADSL: One RJ-11 or RJ-45
LAN: One Port Switch,10/100M Auto MDI/MDIX
Reset Button
Status LEDs Indicator
Power 9V
Operating Range : 110 to 240V AC
Environmental specifications
Temperature: 0°C ~ 50°C
Humidity: 20% ~ 85%
