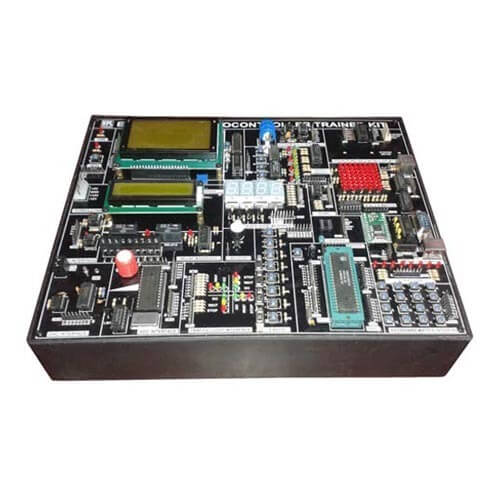

Advance 8051 Microcontroller Trainer Kit (VPL-ET-ADV)

advance 8051 microcontroller trainer kit vpl-et-adv has been designed by using philips 89v51rd2 microcontroller. This controller provides in-system programming so that one may be able to write program and download directly in the controller through serial port without removing it from the system.

advance 8051 microcontroller trainer kit

specifications:

• – cpu: philips 89v51rd2 microcontroller with clock frequency @11.0592 mhz.
• – four seven segment displays
• – 16×2 lcd display interface
• – graphical lcd interface (opional)
• – ewsn status led’s 8 nos.
• – 8 chanel adc interface
• – dac 0800 interface
• – led matrix interface (optional)
• – 4×4 matrix keyboard interface
• – ps2 keyboard interface
• – traffic light interface
• – stepper motor controller interface with stepper motor
• – buzzer interface
• – pwm & interrupt interface
• – eight data switches
• – lm35 temperature interface
• – ir interface
• – relay
• – opto
• – real time clock with battery backup
• – at24c16 serial eeprom
• – usb interface
• – rs-485 interface
• – rs-232 interface using rx/tx of mcu for uploading/downloading
• – on-chip flash program memory with isp and iap capability
