Electric Steel Advanced Gas Monitoring System, Color : Grey

Advanced Gas Monitoring System

Real-Time Pressure Tracking with Multi-Channel Support

Overview

Our Advanced Gas Monitoring System delivers precise, real-time pressure monitoring across 2 to 60 gas channels using high-accuracy 4–20 mA pressure transmitters. Designed for industrial and laboratory environments, the system features customizable set points, instant audible/visual alarms, and interactive visualization tools—ensuring operational safety and efficiency at all times.

Key Features

✅ Live Pressure Monitoring – Real-time pressure display in Bar for each channel

✅ Multi-Channel Support – Scalable from 2 to 60 independent gas channels

✅ Customizable Set Points – Configurable via HMI touch panel or PC software

✅ Intelligent Alarm System – Audible buzzer and flashing alerts for low pressure

✅ Acknowledgment-Based Reset – Manual reset required for alarm silence

✅ Color-Coded Display –

• Green: Normal
• Yellow: Low
• Red: Critical (Immediate attention required)

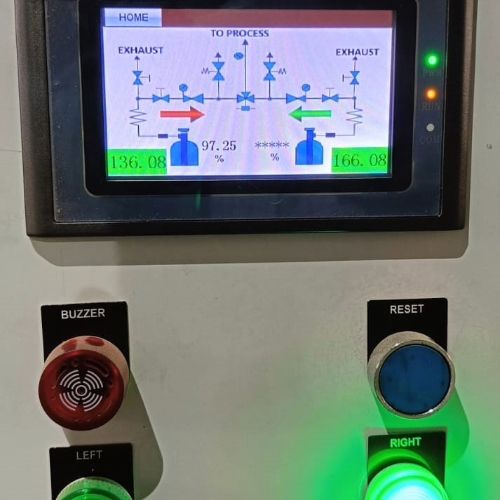

  ✅ Interactive Visualization – Live gas panel, regulator status, and cylinder room display
  ✅ Auto/Semi-Auto Changeover Integration – For seamless gas supply switching
  ✅ Cylinder Status Tracking – Real-time gas level indication (% remaining)
  ✅ Data Logging & Reporting – Exportable trends and reports (CSV/PDF)

Product Details :-

1. Real-Time Pressure Monitoring

• 4–20 mA input for high-precision pressure measurement
• 4-digit live display in Bar (other units available)
• Set point configuration through HMI or PC

2. Alarm & Notification System

• Audible buzzer + flashing LED for pressure drops
• Alarm acknowledgment button (manual reset)
• Pressure status color-coded for fast recognition

3. Scalable Channel Support

• Supports 2 to 60 channels, individually configurable
• Ideal for labs, medical gas rooms, and industrial facilities

4. Interactive System Visualization

• Real-time status on gas panel and pressure regulators
• Cylinder room visualization showing gas % remaining
• Automatic low-level alerts for cylinders
• Supports semi-automatic and fully automatic changeover panels

5. Data Logging & Reporting

• Historical pressure trends stored for review
• Exportable reports in CSV or PDF
• Trend graphs for quick performance analysis

Applications

✔ Industrial Gas Supply Monitoring

✔ Laboratory & Calibration Facilities

✔ Semiconductor & Pharmaceutical Manufacturing

✔ Medical & Hospital Gas Distribution

✔ Research & Cleanroom Environments

Why Choose Our Monitoring System?

🔹 High Accuracy & Industrial-Grade Reliability
🔹 Scalable to Suit Any Operation Size
🔹 User-Friendly Control Interface (HMI or PC)
🔹 Instant Alarm Notification with Acknowledgment Logic
🔹 Live System Visualization for Informed Decision-Making
🔹 Built-In Logging for Compliance & Analysis
