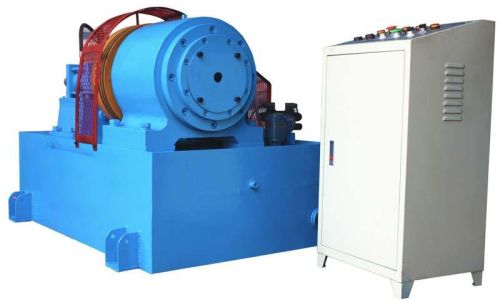

Advanced Stainless Steel Pipe Embossing Machine With Various Size Type

We offer Advanced Stainless Steel Pipe Embossing Machine with Various Size Type.
SS Embossing Machine for Flower Pipes
Advantage:
The embosing technique has good processing quality, low cost and high efficiency characteristics.
Technical parameters:
Model BG-25 BG-50 BG-76 BG-114
Mould size (W*L*H) 35*300*55 50*300*75 70*400*60 90*650*70
Processing scope(mm) 6-32 16-50 25-76 38-114
Work piece wall thickness(mm) 0.2-1.5 0.2-2.0 0.4-2.5 0.7-3.0
Formed length(mm) 290 290 360 600
Time for take shape(S1) 3-12 3-20 8-30 10-40
Reduces the wedge good formula (Ma) 180 200 250 450
Mold make and break quantity (Max) 28 30 40 50
Host motor power (kw) 3 4 7.5 11
The main axle rotaional speed 300 200 200 200
Main axle center altitude 800 800 800 900
Equipment gross weight(kg) 1500 2000 3000 5000
Descriptions:
1. Embossing machine
2. Can make many flower shapes for the customers
3. Process ss, iron, aluminium tube.
4. Certificate: ISO9001:2008
5. Processing: stainless steel pipe, iron pipe, aluminium pipe.
6. Flower shape: flat flower, round flower, craft flower, bulk flower, egg, flower and others.
The machine can make the flower tubes and they can used in stair railing, doors and etc
