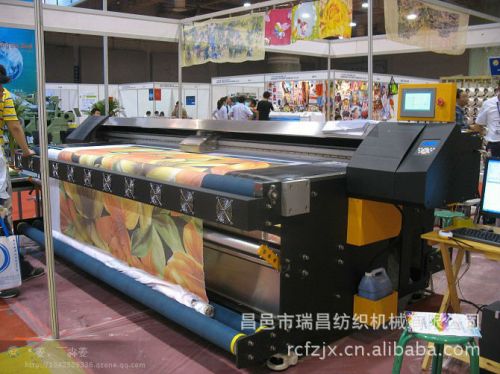

Advanced Technology Digital Printer, Brand Name : Jucai

₹ 27.15 Lakh / 200000 200000 Set

MOQ1 Set(s)
Brand NameJucai
IterfaceUSB 2.0
RIP softwareMonty's Maintop
Pinting mediaTextiles, glass, acrylic, density board, gum PP, photo paper, etc
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Product Details

Brand NameJucai
Printer headEpson 5 or 7 generation
Work environmentTemperature 20℃—30℃ Humidity 50℃—60℃
Input powerAC220V,50Hz/60Hz
Dlivery20 days
ClorC/M/Y/K/LC/LM(selectable)
Price superiorityfactory price
Pnt head hightadjustable
RIP softwareMonty's Maintop
Cean systemAutomatic nozzle cleaning system
Pinting mediaTextiles, glass, acrylic, density board, gum PP, photo paper, etc
IterfaceUSB 2.0
Fabric width1500-3200mm or according to the customer's request

Offering Advanced Technology Digital Printer.
Print technology:
Drop-on-demand piezo electric
Print head type:
Konica KM512-14PL head
Print head controls:
Print head temperature and voltage are software adjustable
Ink Characteristics:
UV Curing ink
Ink Reservoir
Refillable on the fly while printing1000ml
RIP software
Photoprint 10Onyx Caldera
Color Management
ICC based color, adjustment curves, density adjustment
Drying system
UV lamp
File format
TIFF, JPEG, Postscript3, EPS and PDF
Power supply
5060Hz 220V(20%)>20A
Operation environment
Temperature 20Â°C to 28Â°C degrees
Humidity
40% to 60%
Product Model
Docan M10
Printing Size
2.05*3.20m
Media thickness
1-100mm
Nozzle Number
4567810121516 pcs
Resolution
360dpi*360dpi 360dpi*720dpi
720dpi*360dpi 720dpi*720dpi
720dpi*1440dpi 1440dpi*1440dpi
Printing speed
In draft mode up than 30 sq.mh (8 heads)
In standard mode up than 19 sq.mh (8 heads)
In high resolution mode up than 12 sq.mh (8 heads)
Colors
4 colors(C M Y K) or 6 colors(C M Y K Lc Lm). White & varnish can be optional
Outdoor life
2 years(By Docan ink)
Loating Mode
Restroservo
Dimensions
4.8*3.93*1.38m
Packing
Inner: plastic bubble film sealed anti rain & rust, outside: solid wooden carton packing
Weight
2160kg

Additional Information

Payment Terms L/C, D/A, D/P, T/T, Western Union
Port of DispatchQingdao or according to the customers request
Packaging DetailsInner: plastic bubble film sealed anti rain & rust, outside: solid wooden carton packing
Delivery Time20 days
