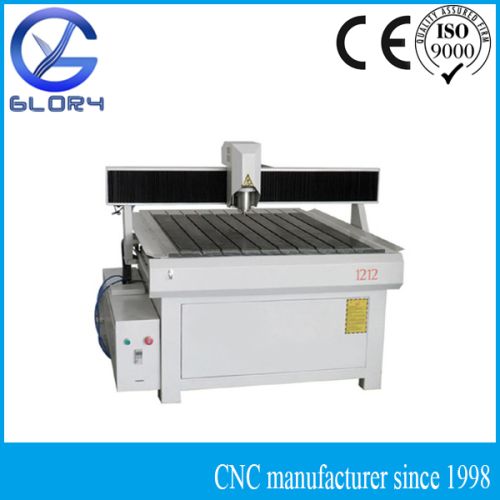

Advertising CNC Router

We are offering advertising cnc router.
Key features:
1. Seamless steel lathe bed
2. 3 axis adopt germany ball screw transmission
3. X axis is equipped with dust-proof cover
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Dsp handle controller with usb interface
8. Gantry movement
application:
advertisement: engraving and cutting various labels, number plate and etc.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Ideal for:
1. Timber
2. Mdf
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Specification gy-g1212b
working area
(x axis) 1200mm
working area
(y axis) 1200mm
clearance (z axis) 120mm
machine dimension 1340*1550mm
spindle 2.2kw water-cooled
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
drive system
(xyz axis) germany ball screw
linear guide taiwan pmi 20mm
drive motors stepper motors
inverter fuling
driver yako
command g code
cutter diameter φ3.175-φ12.7mm
maximum travel speed 10mmin
table top aluminum t-slot protected with pvc
controller dsp handle
power requirements 220v50hz
net weight 450kg
gross weight 600kg
custom sizes and upgrades for the components are available on request.
