Fuwei Aerated Concrete Block Machinery

We offer aerated concrete block machinery.
Specifications
aac concrete block making machine
1. Light weight,
2. Keeping temperature,
3. Foam block machine
aac concrete block making machine
1. Introduction
aerated concrete brick (light brick ) is the light and porous building material. It has light weight keeping temperature cant burn and other advantages. It can be made into many kinds of bricks(for example: 600×200×100, 80×80×180, 240×115×53, 600×200×125), they could be used industry building and common building. They are more and more popular in the world. In the future, they will replace the clay brick completely.
2. Aerated concrete common conception
common concrete density is usually 1600-2400kg/m3, but aerated concrete are 500kg/m3, 600kg/m3, 700kg/m3. It has not the big grain, main use silicon material (for example: coal ash, sand, stone dust and others ), through making the material small for example sand, they can be used directly if has enough degree of small (for example coal ash. Mixing calcium material lime cement water to a special slop, then add the aluminum dust and the additive. Make the aluminum dust and the special slop have a chemical reflect. Then produce hydrogen to make the concrete slop to expanding or swell, foam. Next, put them into the curing room to concreting cutting steaming curing, last, there will become the light brick, the porous rate is 70-80%.
3. Advantages
light weight
aerated concrete density is usually 400-700kg/m3, (according the market in produce ), same as 1/3 of clay brick and 1/5 common concrete. So use the light brick can reduce the weight of the build more, and also reduce the beam of roof and pillar press best. Then you can see, it can save the material and cost, it also fighting shaking.
keeping temperature
it has many porous, the delivery hearting coefficient is 0.9-0.22w/(mk), the same as 1/4 or 1/5 of clay brick, so it is best materials now in the world. Also many kinds raw material, have lowest waste main material: coal ash sand waste mine material coal stone, stone dust and other silicon materials.
detailed product description
foam block machine, best offer with most competitive price, quality guarantee machine, any size block widely used for high buildings, walls, etc many many infrastructure projects.

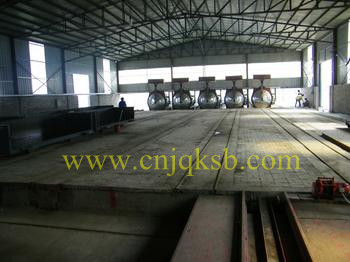

Aac production line/autoclaved aerated concrete production line
we are the top leader in china on manufacturing the autoclaved aerated concrete line(aac) with 65% market share. We have exported our lines to different countries -- russia, thailand, ukraine, middle east and so on.
We can supply our customer for designing, production, installation, commissioning, training and good after-sale service.
capacity: from 20, 000 cubic meter to 400, 000 cubic meters per year.
Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.
1. Product weight is according to 600kg/m³ to control.
2. Annual capacity 300, 000m3.
3. Set raw material proportion: cement 6.5%, raw lime 23%, fly ash 68%, gypsum 3%, aluminum paste powder 350g/m3.
4. Water and material rate 0.631
5. One mold product 2.88m3
6. Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
7. Casting slurry temperature 38-42 degree
8. Body quiet stop. Time is 1.5-2.5hours, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18mpa
9. Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6mpa, total 6.5 hours.
