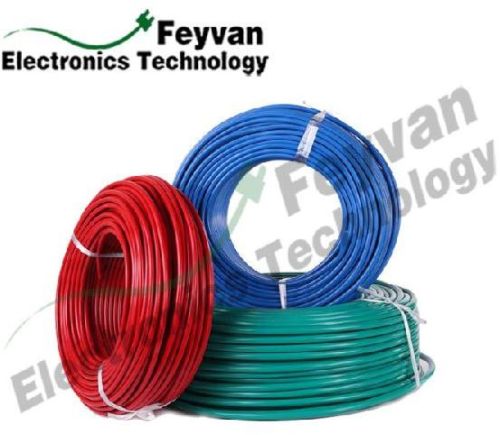

AEX Cross-linked XLPE Insulated Automotive Wire

AEX automotive wire can be used in low voltage circuits for automobiles (vehicles and motorcycles) such as LED instrument, ignition system, ESP & ABS, seat heating and window control system. AEX have higher heat resistance characteristic than AV and AVX automotive wires in compliance with JASO D608 and RoHS. A means: Lower-voltage wires for automobiles E means: Polythylene X means: Cross-linked Technical Date: - Rated temperature: 120℃ - Reference standard: JASO D608-92 flame test - Conductor: Stranded annealed bare copper - Insulation: XLPE compound especially for automotive - Uniform insulation thickness to ensure easy stripping and cutting - Resistant to heat, oil, abrasion and cold Nom. Cross Section Area mm2 Conductor Nom. Thickness mm Finished Wire Diameter Words Printed Symbol   No./mm Max. Resistance At 20℃ Ω/km Nom. mm Max. mm 0.5 7/0.32 32.7 0.5 2.0 2.2 AEX-0.5 0.5f 20/0.18 36.7 0.5 2.0 2.2 AEX-0.5F 0.85 11/0.32 20.8 0.5 2.2 2.4 AEX-0.85 0.75f 30/0.18 24.4 0.5 2.2 2.4 AEX-0.75F 0.85f 35/0.18 21.0 0.5 2.2 2.4 AEX-0.85F 1.25 16/0.32 20.8 0.6 2.7 2.9 AEX-1.25 1.25f 50/0.18 14.7 0.6 2.7 2.9 AEX-1.25F 2.0 26/0.32 8.81 0.6 3.1 3.4 AEX-2 3.0 41/0.32 5.59 0.7 3.8 4.1 AEX-3
