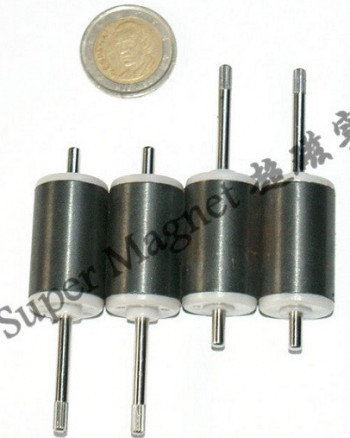

AF19x30mm Hard Ferrite Magnetic Rotor For Air Pump

₹ 90.50 - ₹ 905 / Pieces

Number Of Flowerferrite magnetic rotor
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Detailed Product Description: Product Name: AF19*30mm hard ferrite magnetic rotor for air pump Product Part NO.: AF19*30 Specifications: Material: Sintered Ferrite magnets (hard ferrite) Magnet....

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Detailed Product Description:
Product Name: AF19*30mm hard ferrite magnetic rotor for air pump
Product Part NO.: AF19*30
Specifications:
Material: Sintered Ferrite magnets (hard ferrite)
Magnet Shape: Ring
Magnet Size :OD19mm, T30mm
Magnetization: diametrical 2 poles
Residual Magnetic Flux Density (Br): 3600-3900Gs
Coercivity Force (Hcb): 3100-3400 Oe
Intrinsic Coercivity Force (Hcj): 3300-3800 Oe
Energy Density (BH)max: 27-30 jm3
This specification defines the dimensional and magnetic properties of ring magnet is used for motor pump applications .
Origin: Shenzhen, China
Original Manufacturer: Super Magnet Co.,Ltd
Applications: Motors,Couplings,Sensors,Holding systems,Loudspeakers, pump and much more.
