Contact SupplierWe are offering agilent e4445a spectrum analyzers.

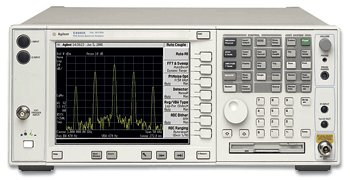

e4445a psa series spectrum analyzer, 3 hz - 13.2 ghz
the agilent psa series offers high-performance spectrum analysis, up to 50 ghz, with powerful one-button measurements, a versatile feature set, and a leading-edge combination of flexibility, speed, accuracy, and dynamic range. From millimeter wave and phase noise measurements to spur searches and modulation analysis, the psa series offers unique and comprehensive high-performance solutions to r&d and manufacturing engineers in cellular and emerging wireless communications, aerospace, and defense.
specifications
performance
* +-0.19 db absolute amplitude accuracy
* -155 dbm displayed average noise level (danl)
* -118 dbchz phase noise at 10 khz offset
* 81 db w-cdma aclr dynamic range
analysis bandwidth
* standard 10 mhz analysis bandwidth
* optional 40 or 80 mhz analysis bandwidth to capture and measure complex signals. View demo
* -78 db (nominal) third order intermodulation for 40 or 80 mhz analysis bandwidth
* up to 300 mhz analysis bandwidth for calibrated vsa measurements
flexibility
* flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options
* agilent's powersuite one-button power measurements included as standard
* matlab data analysis software for general purpose data analysis, visualization, and measurement automation. Matlab software for psa series
