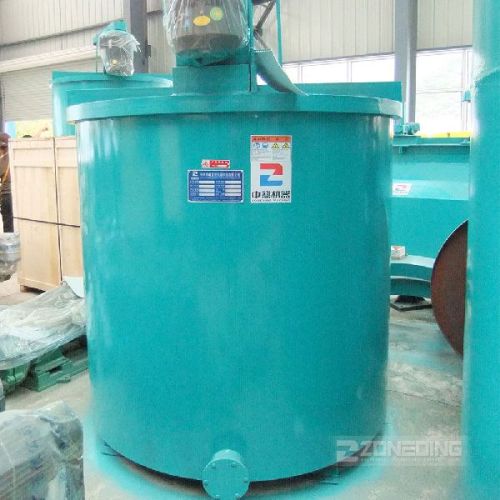

Agitator Mineral Mixing Tank

0.6t Mineral Mixing Tank With Agitator Introduction of Mineral Mixing Tank Mixing Tank With Agitator is usually used to stir the pulp before the flotation process work, thenthe pulp and medicamentcan be fully mixed in the mixing tank. Mixing Tank can createconditions for ore dressing operation. Moreover, this kind of mineral mixing tank isalso applied to all kinds of mixing work in the chemical and mining industry. Advantages of Mineral Mixing Tank 1. Advancedstructure of impeller, strong stirring ability. 2. Theimpeller of agitation tank adopts umbrella shaped with large diameter andlinear velocity to enhance the agitation and circulation capability. 3. Theenhancement of circulation capability improves floatation index. 4. Thebaffle can compress negative pressure to a limited space and improve suctioncapability. As a result, the circulation capacity is enhanced. Technical Parameters of Mineral Mixing Tank Model Internal diameter (mm) Internal Height (mm) Volume (m3) Impeller speed (rmin) Impeller diameter (mm) Weight (t) Motor power Dimension (LxWxH) (mm) Model Power(KW) XB-750 750 750 0.33 530 255 0.6 Y90L-4 1.5 1131×880×1241 Mineral Mixing Tank in Lead-zinc Ore Processing Plant Mineral Mixing Tank Picture Show.
