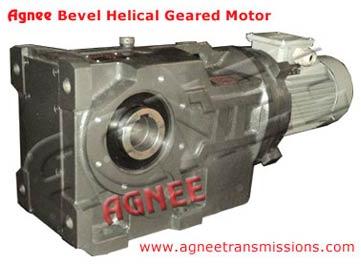

We are offering bevel helical geared motor.
series ak right angle drive helical bevel helical gear motors offer ratios from 8:1 to 160:1 in three stages or up to 10000:1in five stages. Motors are available up to 90kw and output torque capacity up to 12,300 nm.
the series k geared motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts. Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket and all variants are available either motorised or with an input shaft assembly.
adding to the new range of agnee gear motors this product takes advantage of our many years of accumulated design expertise together with the use of high quality materials and components. The end result is a series of speed reducing geared motors offering high load carrying capacities, increased efficiency, quiet running and reliability.
the range includes 9 sizes of unit ak03, ak04, ak05, ak06, ak07, ak08, ak09, ak10 and ak12
features of bevel helical gear motor
standard motor connection (iec frame).
ability to fit double oil seals, on input and output shaft as required.
all units are dimensionally interchangeable with other major manufacturers.
units are manufactured and assembled from a family of modular kits for distributor friendliness minimising inventory and maximising availability.
motorised units can be fitted with a backstop module and reducer units can be fitted with a backstop and fan.
applications:
-conveyors, agitators, elevators, cranes, crushers
-industries covered -are chemicals, pharma, packaging, food processing, plastic, automation etc.
