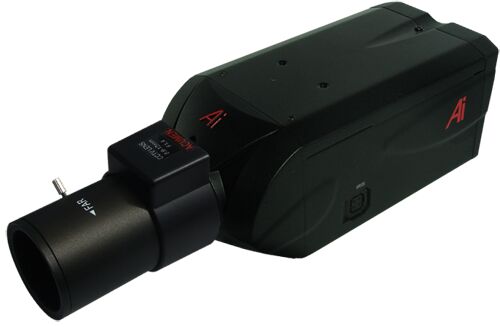

AI-T33I CCTV Camera

Description:
Specifications
TV System PAL/NTSC
Image Sensor 1/3\\\" Sony SUPER HAD II, 760H
DSP SONY Effio-E Enhanced
Image dimensions PAL:795 x 596 Pixels
NTSC:811 x 508Pixels
Video Output 1Vp~p Composite/75ohm (BNC connector)
Resolution 600TVL
Minimum Illumination 0.015 Lux (F2.0)
Mechanical IRIS Auto IRIS Control
Signal-to-noise Ratio over 50db
Synchronization System Internal/Line Lock Sync.
Backlight Compensation BLC/HLC/OFF/ON
Shuttle Auto/Manual
Gain Control Auto/Manual/OFF
F.L. (Flickerless) ON/OFF
White Balance INDOOR/OUTDOOR/ATW/ONE PUSH/AUTO
ATR ATR
Privacy Mask OFF/ON (4 Zones)
Motion Detection yes
OSD Yes
Day & Night True Day and Night (Auto)
Camera ID max 12 characters
Noise Reduction 2DNR, Y/C Level control
Gamma Correction 0.45 / 1.0 Selectable
Picture Adjustment Brightness/Contrast/Mirror/Sharpness/Gain/Hue/Saturation
Compression Format H.264/MPEG-4/M-JPEG
Max. Video Resolution D1, CIF, QCIF
Video Quality 4levels adjustable
Audio I/O 1/1
Operation Mode Two-way audio
Interface 10Base-T/100Base-TX auto-negotiation, RJ-45 socket ; Support MDI/MDI-X auto crossover function
Supported Protocols HTTP, TCP/IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP, uPnP
RS-485 Yes
Alarm Input/Output 1/1
Event Triggered by Alarm input, Manual trigger,
Notification over Trigger alarm output, Send mail notification, Upload video to FTP,Record video to SD card, Send HTTP notifi cation and Network alarm
SD Card SD/SDHC memory card slot (card is not included)
Hardware Reset Button Yes
Power Source AC24V/DC12V & PoE
PoE Optional (PoE 802.3af)
Power Consumption 5W max. (12VDC).
