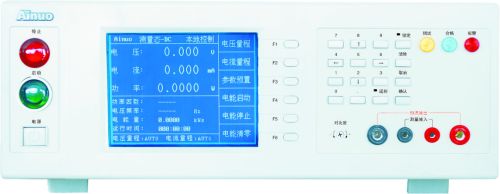

Ainuo Ground Bond Tester (an9613h (f)/an9616h (f))

Model
AN9616H(F)
AN9613H(F)
AC Output Current
3.0~60.0A
3.0~40.0A
Voltage
AC 10V MAX
Frequency
50Hz/60Hz ,optional ±100ppM
Parameter Setting
Setting Range of Current
AC 3.0~60.0A
AC 3.0~60.0A
Current Resolution
0.1A
Upper Limit Setting of Resistance
1mΩ~1000mΩ
Lower Limit Setting of Resistance
1mΩ~1000mΩ
Resistance Resolution
1 mΩ
Test Resistance Accuracy
±（2%of upper/lower setting+2mΩ）
Upper Limit Setting of Voltage
0.00~10.00V
Lower Limit Setting of Voltage
0.00~10.00V
Voltage Resolution
0.01V
Test Voltage Accuracy
±（1% of upper/lower setting +0.02V）
Test Time Range
0.5~999.9s (0=continuous)
Time Resolution
0.1s
Measuring Function
Current Range
AC 3.0~62.0A
AC 3.0~42.0A
Current Resolution
0.1A
Current Accuracy
±(1% of reading+4 counts)
Resistance Range
1mΩ~1000mΩ
Resistance Resolution
1mΩ
Resistance Accuracy
±(2% of reading+2counts)
Auto Reset to Zero Range
1mΩ~1000mΩ auto/manual
Voltage Range
AC 0.00~10.00V
Voltage Resolution
0.01V
Voltage Accuracy
±(1% of reading+2counts)
Auto Reset to Zero Voltage
0.00~1.00V auto/manual
Display
LCD display
Measure Mode
4-lines
Interface
RS232(RS485 optional), Printer
Start, Stop, Select memory setting 1-8 input, Pass, Fail, Testing, Error output
Dimension (W×H×D) (mm)
400×156×475
