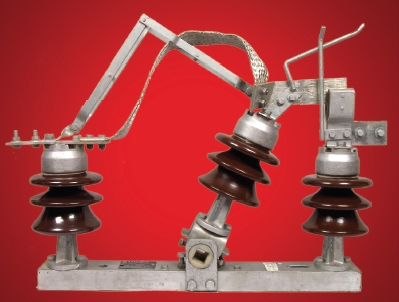

Air Break Switches

he Gang operated Air break switches are meant for outdoor application and are suitable for horizontal or vertical mounting. They are designed for satisfactory performance in harsh atmospheric conditions of high/low temperatures & humidity. Their primary function is to isolate a 11 kV, 3 Phase network. Asiatic manufactures the Air break switches in both Porcelain & Silicone rubber versions.

 Features

 * Single break type with 2 or 3 post insulators per pole depending on requirements of the customers.

 * Can be used for single or three phase applications.

 * Robust sturdy design with bottom MS channel of adequate dimensions which imparts requisite

strength.

 * Self lubricating central bush bearing in 2 or 3 insulator design of air break switches allows easy

operation.

 * Copper contacts are made of ETP grade high conductivity copper and are spring loaded for adequate contact pressure. The contacts are duly

plated to improve resistance to corrosion and offers a low resistance current path.
  * The Post insulators are available in Porcelain and Silicone Rubber with large creep age distance suitable for heavily polluted atmosphere and meets the stringent requirements of IS/IEC standards.

 * All MS parts and Hardware are duly hot dip galvanized as per standard specifications which imparts long life to the switch.

 * In 3 insulator design, tin plated braided Copper wire of adequate cross section is provided as per rating of the GOAB switch and depending upon customer requirements.
