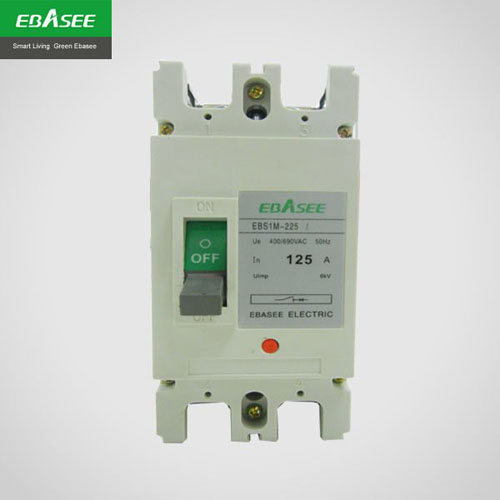

Air Break Switches, Brand Name : Ebasee

We are offering ebs1m series air break switches.
Product description
1,circuit breaker frame current:125a, 160a, 200a, 250a, 400a, 630a, 800a
2,breaking capacity: 25ka~100ka
3,pole:2,3,4p
4,ce
product feature
ebs1m series moulded case circuit breakers are one of the new breakers designed and developed by comprehensively adopting advanced technology.
Rated insulation voltage of this series of breakers are up to 800v. It applies to distribution network circuit of ac 50hz or 60hz with rated operational voltage up to 690v and rated operational current up to 800a. It is used to protect circuits and power supply equipment from damage of overload, under voltage, short circuit etc. Can also be used for infrequent start of motor and provide overload, short circuit and under voltage protection for the motor.
This breaker can be installed both vertically and horizontally.
This product complies with standard of iec60947-2.
Product specificationmodels
standard: iec60947-2
rated current in (a): 6~800a
rated insulation voltage ui (v): 500v, 800v
rated operating voltage ue (v): 690
rated frequency (hz): 5060
ultimate short circuit breaking capacity icu (ka) :25~100
service short circuit breaking capacity (ka) :25~100
arcing over distance(mm) : 0
poles: 2, 3, 4
application
normal working conditions:
ambient air temperature: -5°c~+40°c
altitude: less than 22.5°c
places free from erosion of rain and snow
payment
lc da tt dp
delivery
within 25 days
minimum order
50 pcs
packaging
standard export carton.
